Product Details

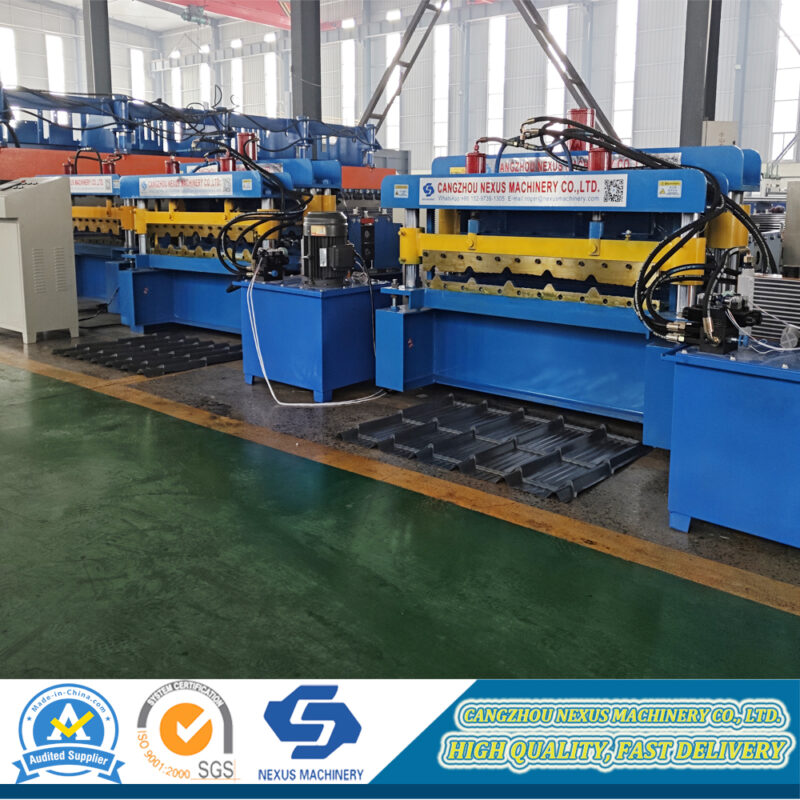

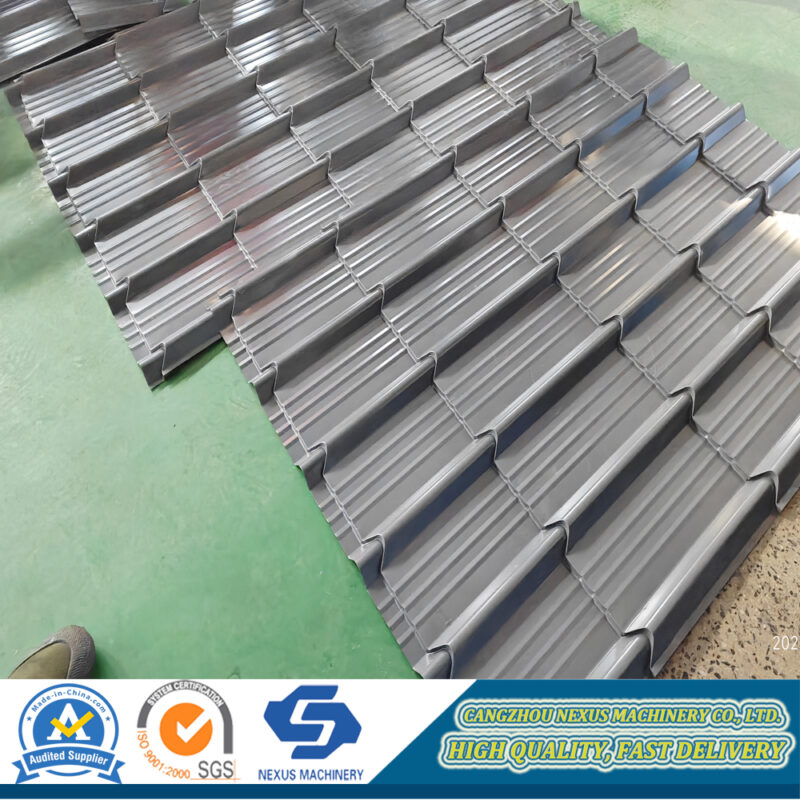

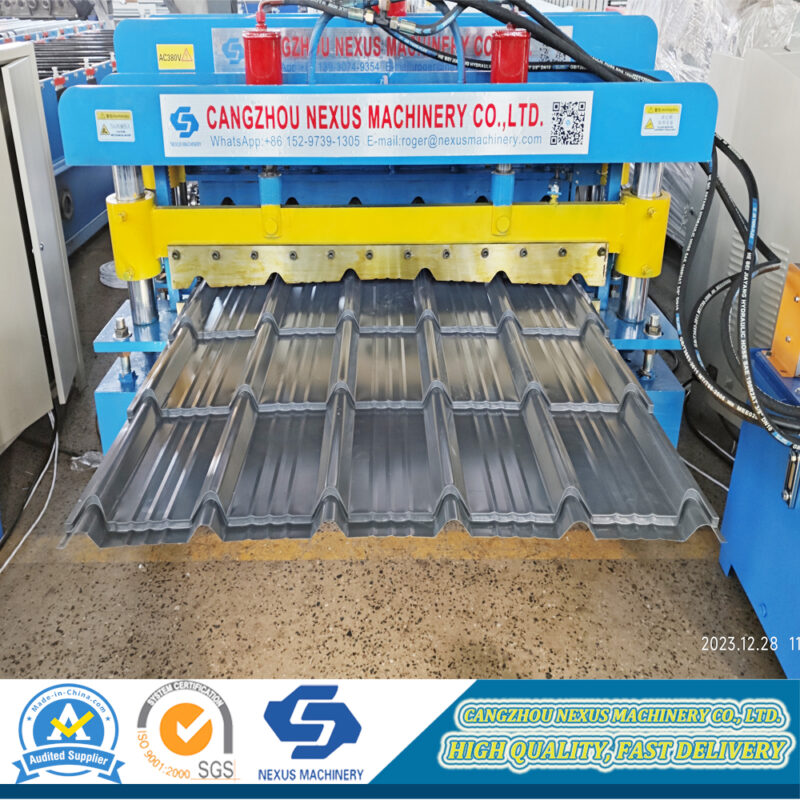

Step Tile Sheet Roll Forming Machine makes roof tile sheet with 1200mm coil width, which is very popular in Africa, Asia, America market. The main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.70mm. Work speed can reach 7m/min.
Main Parameter:
| Forming steps | 13 stations for step tile sheet |
| Shaft diameter | 72mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 7m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
