Product Details

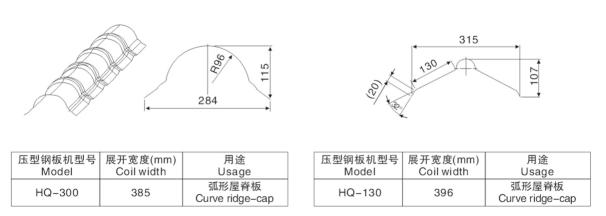

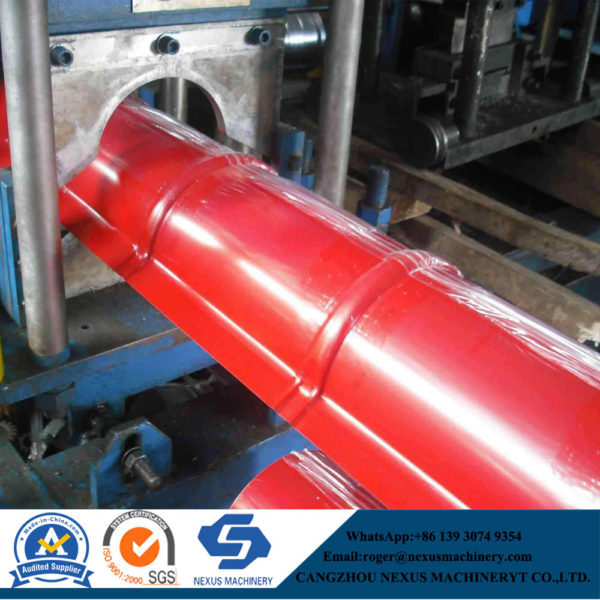

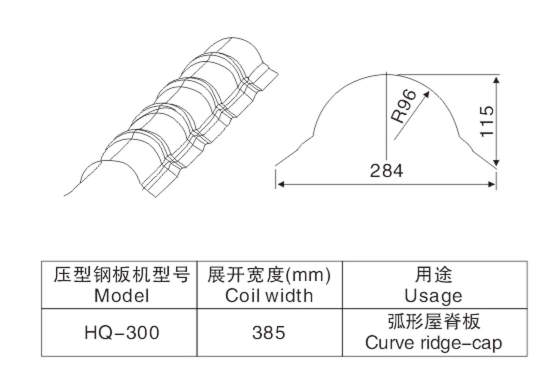

The ridge cap are used to connect with roof tiles to prevent rain and snow from penetrating. One machine make one ridge cap profile. Production speed of this machine can reach 12-15m/min.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency
Main Specification:
| Forming steps | 15 stations |
| Shaft diameter | 80mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 7-15m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Machine Size | 5600mm*600mm*800mm |
