Product Details

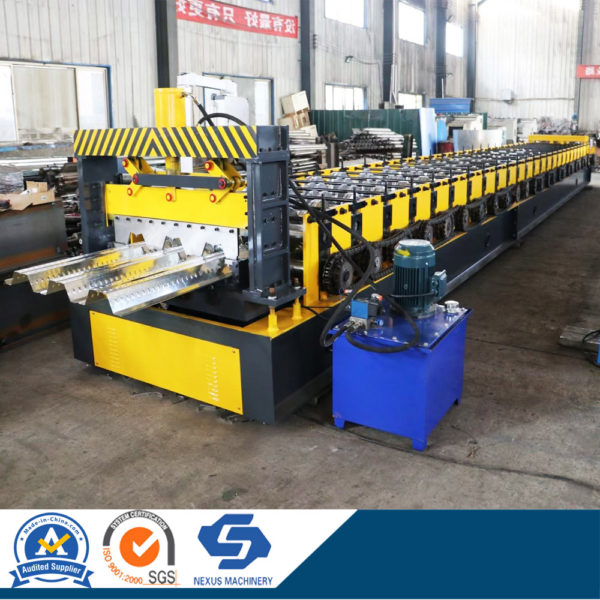

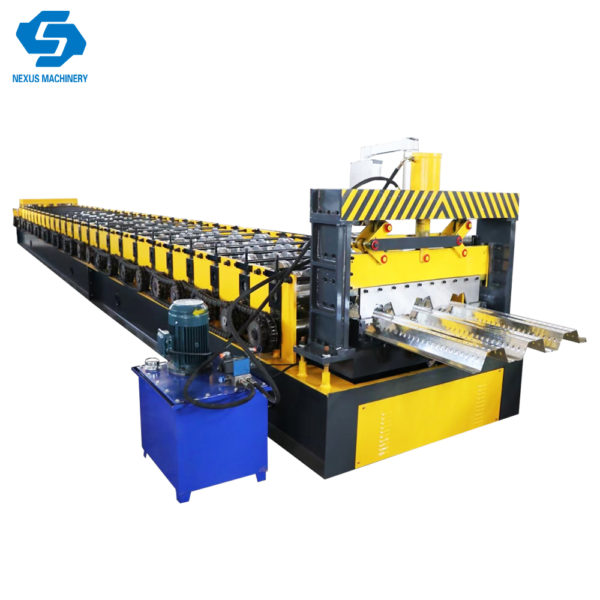

Steel Decking Sheet Roll Forming Machine is designed to suit coil width 1200mm, effective width is 914mm. Main material is galvanized steel.
Thickness range from 0.70-1.20mm. Work speed can reach 20m/min.
Main Parameter:
| Forming steps | 26 stations |
| Shaft diameter | 90mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 20m/min |
| Transport | By chains |
| Power of main machine | 11 kw*2 |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
