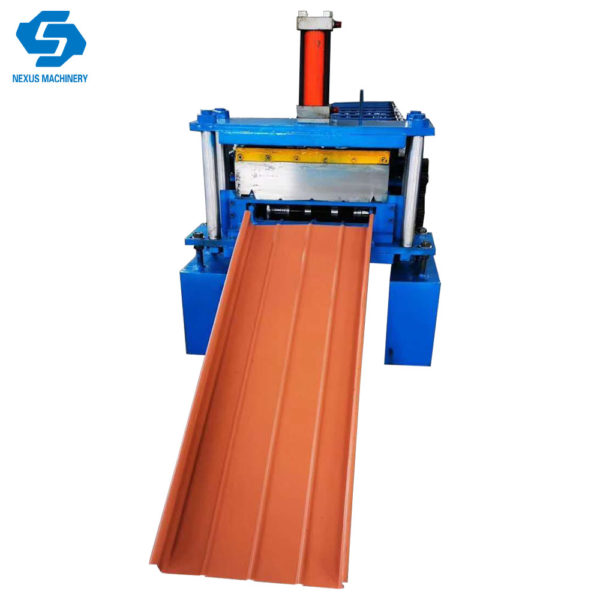

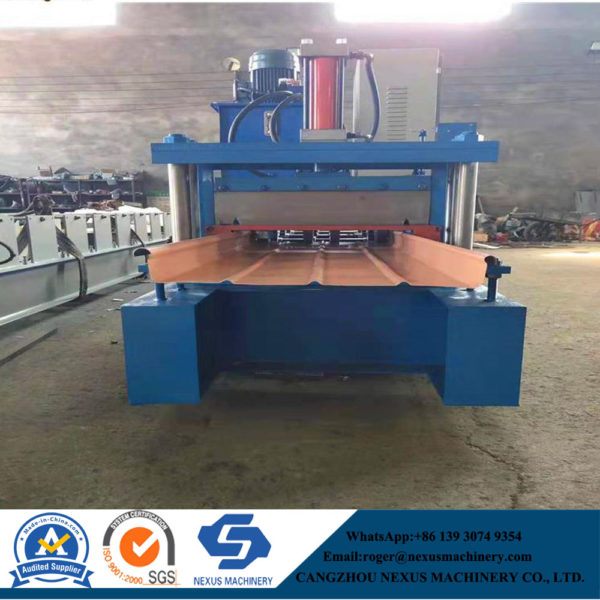

Standing Seam Roll Forming Machine is a kind of roll forming machine to make standing seam roof sheet, it is designed to suit coil width 600mm, the main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet (Grade 3005). Thickness range from 0.70-1.20mm. Work speed can reach 15m/min.
Main Parameter:
| Forming steps | 14 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
