Product Details

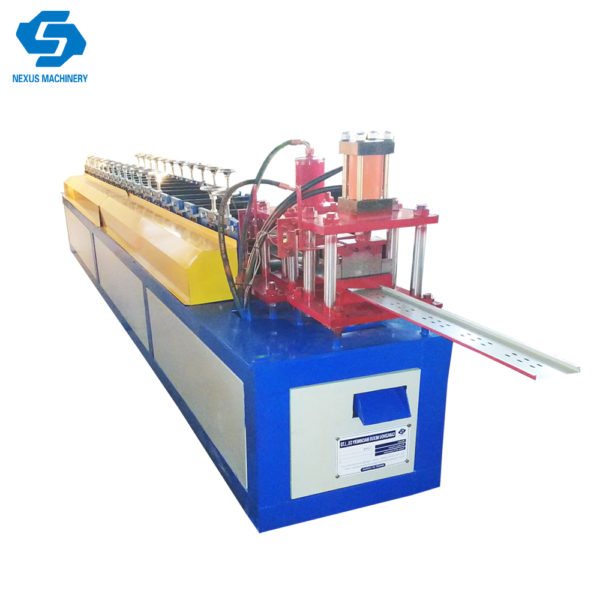

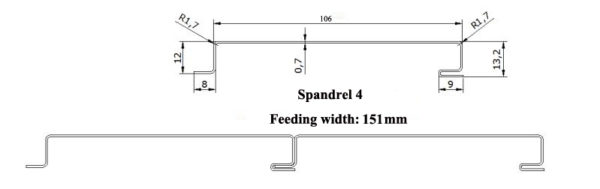

Spandrel Sheet Roll Forming Machinery is used to make metal spandrel profile sheet, the function of spandrel sheet is ceilings panel. Usually it has 4 inches and 6 inches width, very common designs in Philippines.
Main Parameter:
| Forming steps | 18 stations |
| Shaft diameter | 50mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 20m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
