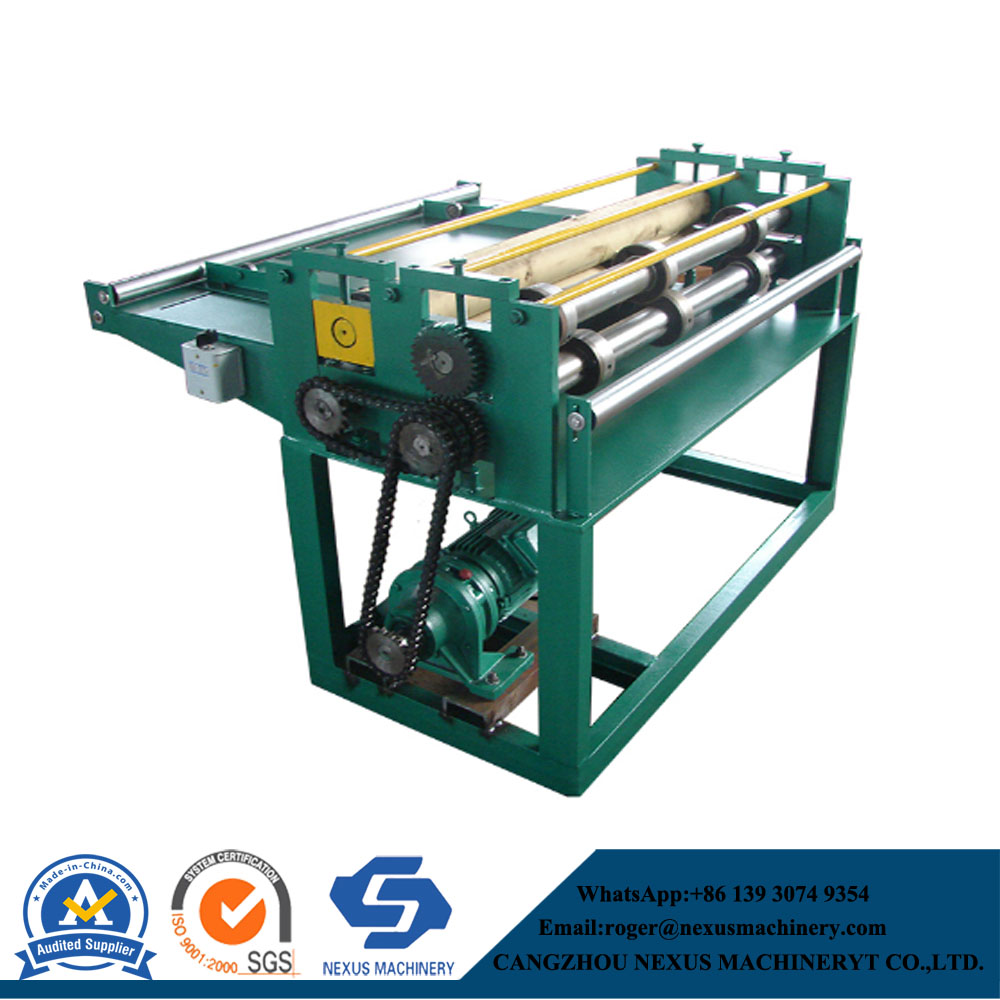

Compared with the coil slitting line, the simple color steel coil slitting strip machine is used to cut wide width materials panel to many narrow width products. It suitable for same same factory or just need slit panel work.

Material of frame: (high grade) 80mm H shape steel welding
Thickness of middle plate: 14mm
Step of forming roller: 4steps
Diameter of shaft: 65mm
Drive type : By Chain,Chain 19.05 mm (high grade)
Line speed: 10-12m/min
Feeding width: 914-1250mm
Suitable coil thickness: 0.3-0.10mm
Cutter : 3sets
Weight of machine : 0.5Tons
