Product Details

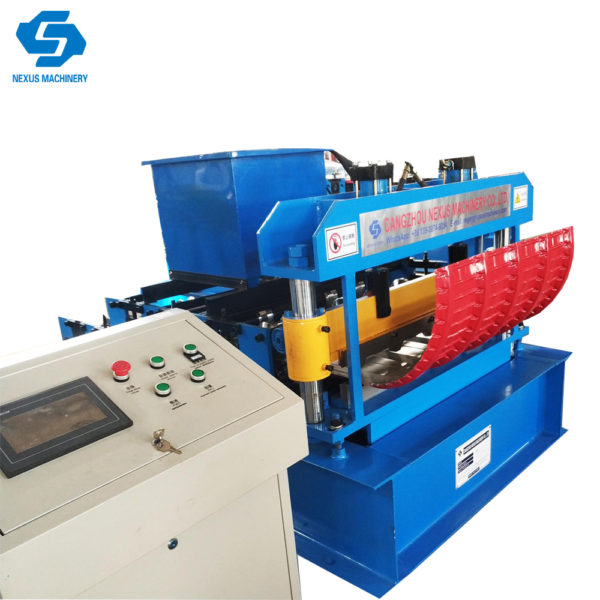

Hydraulic Curving machine is a accessory machine for roll forming machine. It is also called crimping machine,Cranking machine and Bullnose Machine. This machine meets with customer’s special requirement with curved roof sheet, the arch from 0 to 120 degree, the suitable panel thickness can be 0.3-1.0mm.
Main Parameters:
| Width of the plate | 1000mm/1250mm, customized |
| Voltage | 380V 50Hz 3phases(as you need) |
| Max bending angel | 120 degree |
| control system | transducer control |
| control system | Mitsubishi brand PLC |
| sevo-actuator | power 1kw |
| material thickness | 0.3-1.0mm |
| working speed | 0-10m/min |
