Product Details

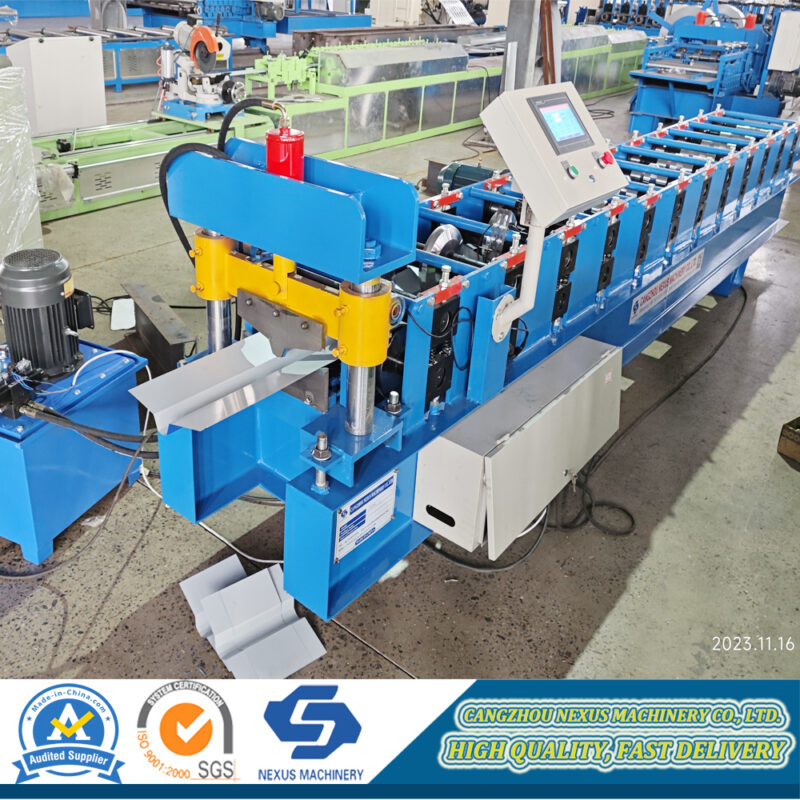

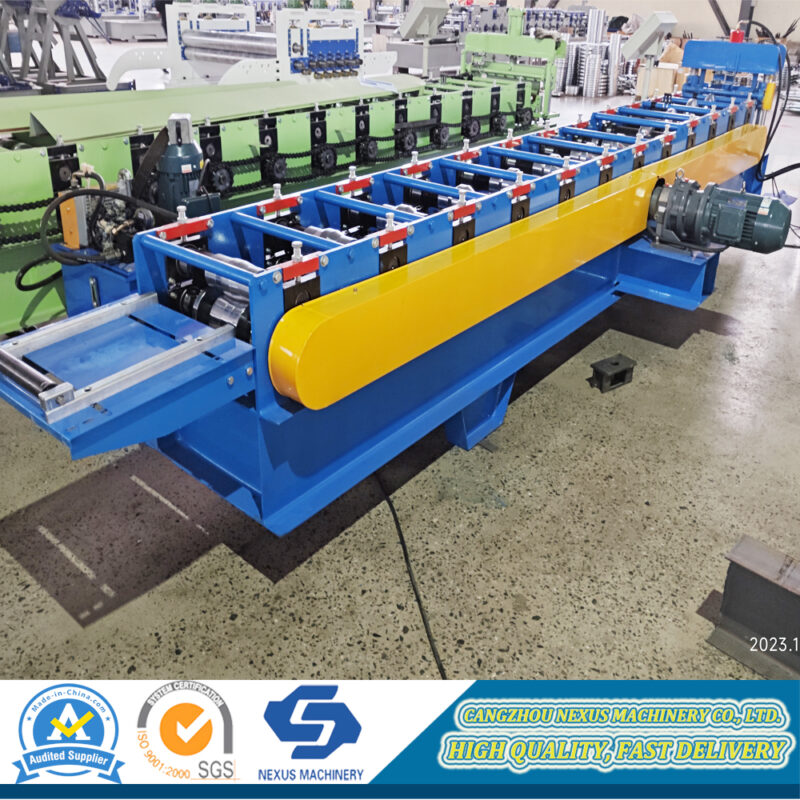

Ridge Cap Roof Sheet Roll Forming Machine makes roof ridges with 300mm coil width, which is very popular in Asia, Africa and South America market. The main material is pre-painted galvanized steel and galvanized steel. Thickness range from 0.20-0.70mm. Work speed can reach 10-15m/min.
Main Parameter:
| Forming steps | 13 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 10-15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |

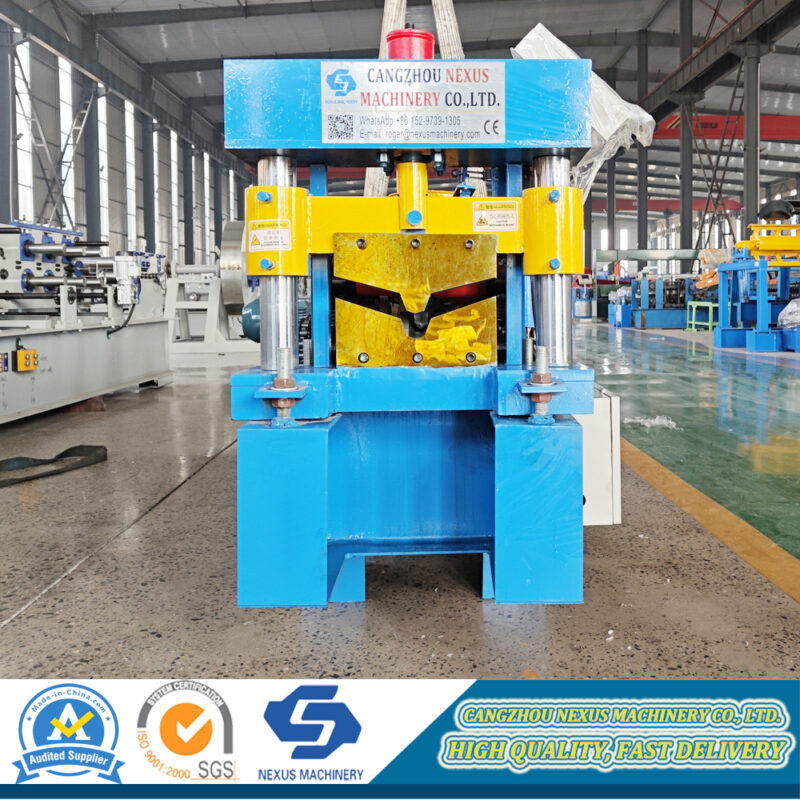

| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
