Product Details

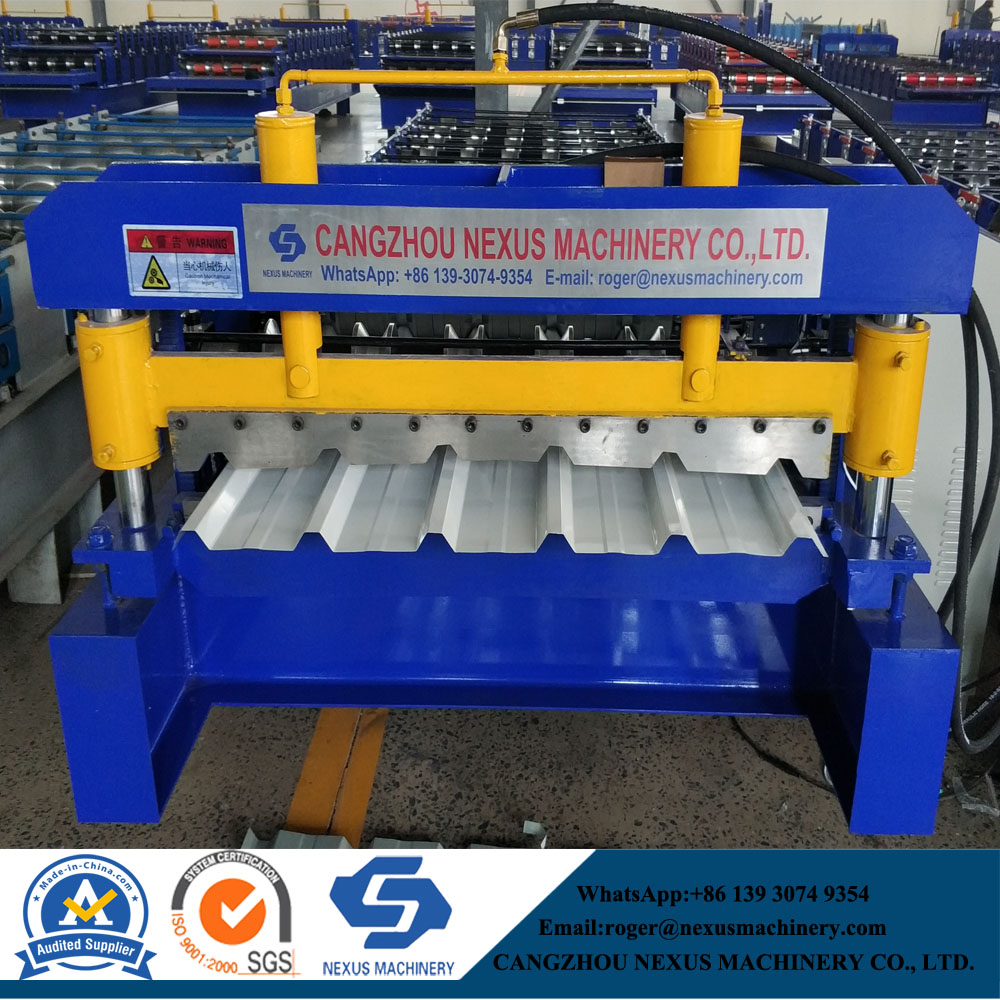

Trapezoidal Roof are a common version in the market. The shape is simple and easy to install. Suitable for markets with low consumption or high labor costs. Trapezoidal roof roll forming machine has four parts. decoiler, feeding part,roll forming parts,cutting the roof sheet. NEXUS MACHINERY company focus on meet customer's requirement to customize machines with different configuration.
Main Parameter:
| Forming steps | 13 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 20m/min |
| Transport | By chains |
| Power of main machine | 4 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
