Product Details

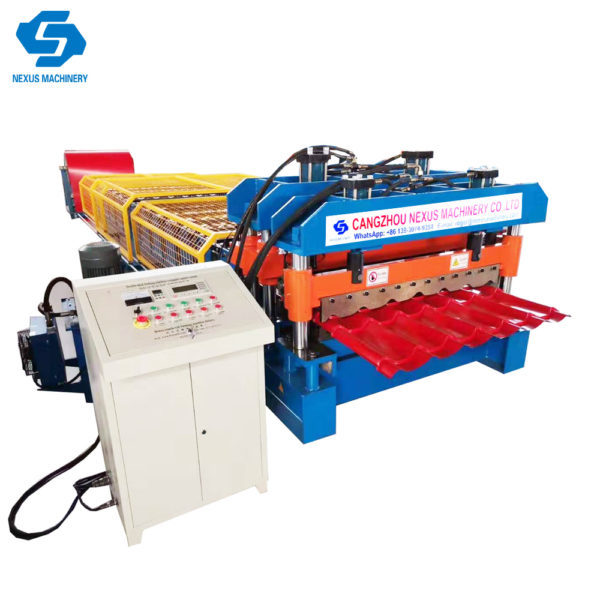

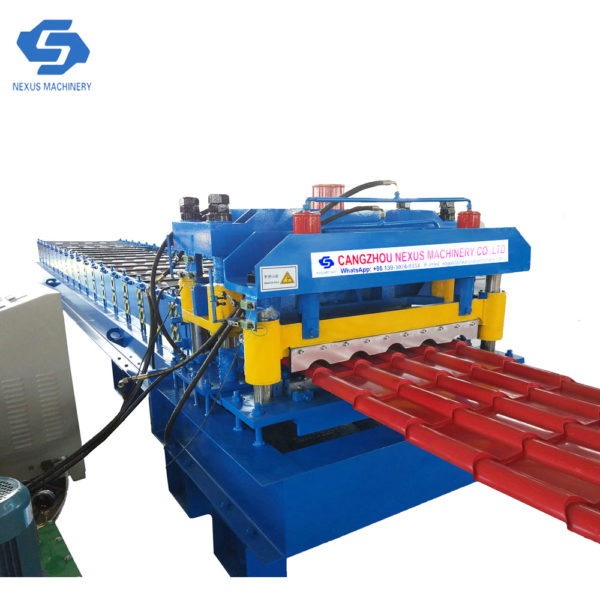

Metal Tile Sheet Making Machine is designed to suit coil width 1000mm, the main material is pre-painted galvanized steel and galvanized steel.
Thickness range from 0.20-0.70mm. Work speed can reach 5m/min.
Main Parameter:
Forming steps | 13 stations |
Shaft diameter | 70mm |
Design type | Middle plate welded |
Machine frame | 350# H steel welded |
roller material | 45# steel, surface hard chromium plating. |
shaft material | 45# steel |
Work speed | 5m/min |
Transport | By chains |
Power of main machine | 5.5 kw |
Type of cutting | Hydraulic |
Cutting tolerance | ±1mm |
