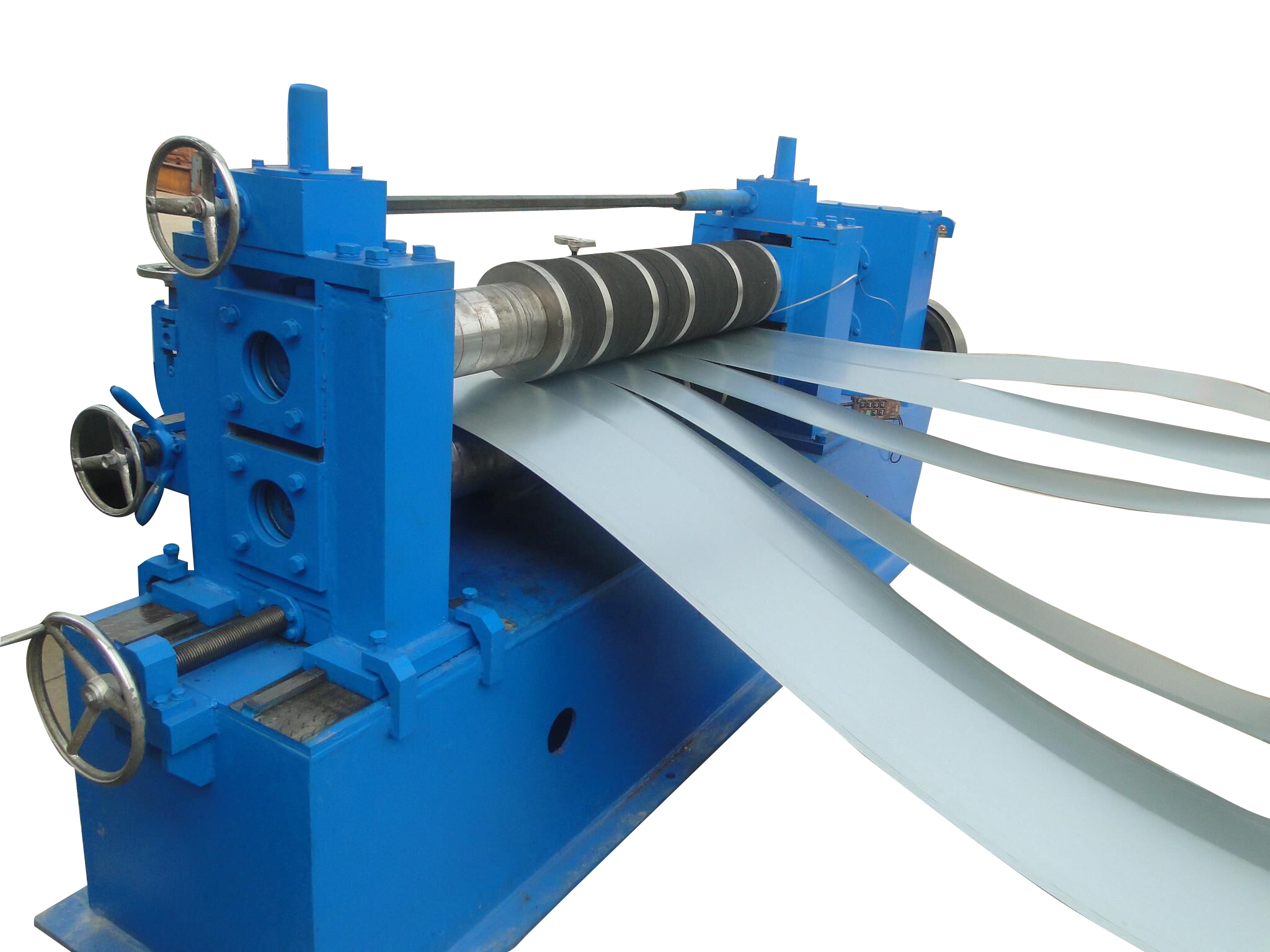

Full Automatic Metal steel Coil Slitting Machine is used to cut wide width material to many narrow width products. The knife shaft and whole machine are manufactured by our own with high precision.Our machine can work with various special materials, such as  iron, steel, and stainless steel,etc with the best additional value.In addition to our complete models, special specifications are also accepted.

Thickness of coiled plate: 0.3-3mm;

Width of coiled plate: 1250mm;

Slitting speed: 0-120m/min(0.3-1mm) 0-100m/min(1-2) 0-80m/min(2-3mm)

Loading capacity of de-coiler machine (feeding machine): 10T

Coil I.D:  Φ508mm;  Coil O.D:  Φ1600mm

Knife pivot diameter of slitting :120mm

Slitting blade:Φ180Xφ320X15

Material of slitting blade:6CrW2Si

Precision of slitting: ≤±0.05

Recoiler I.D: 508mm

The hardness of slitting blade:HRC58°-60°

Area of the whole machine:28m(L)x8m(W)

Operator needed:1 technician and 2 general workers

Weight of the whole machine:40T

VoltageL 380V-50HZ-3P. or as required
