Product Details

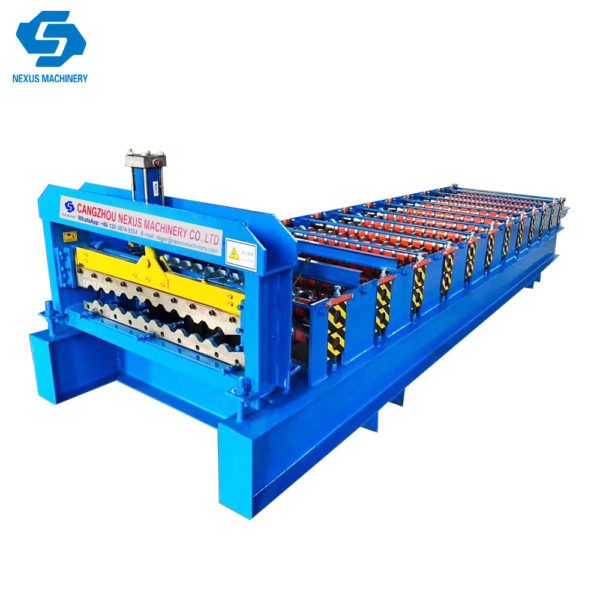

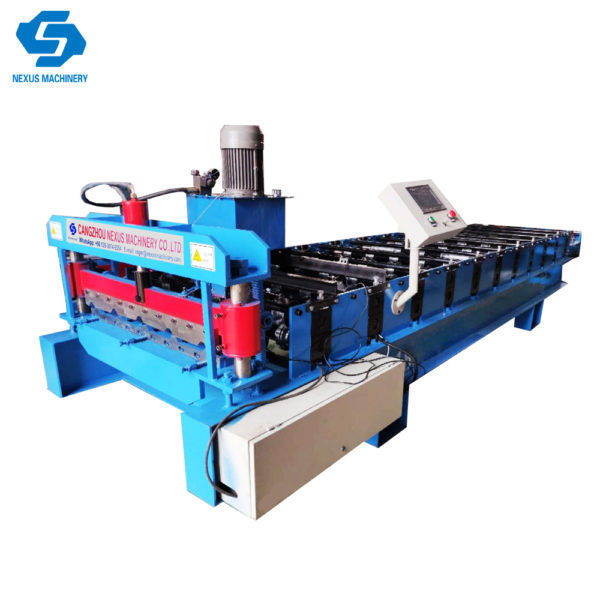

Multi Rib Span Roof Sheet Roll Forming machine is designed to make Multi Ribs Roofing sheet. It composed of three parts. All the product line at least 10 meters per minute. The final roof sheet widely used in industrial plants, warehouses, old industrial plants, breeding greenhouses, etc.
Main Parameters:
| Forming steps | 18 stations |
| Shaft diameter | 80mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 20m/min |
| Transport | By chains |
| Power of main machine | 7.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
