Floor deck roll forming machine

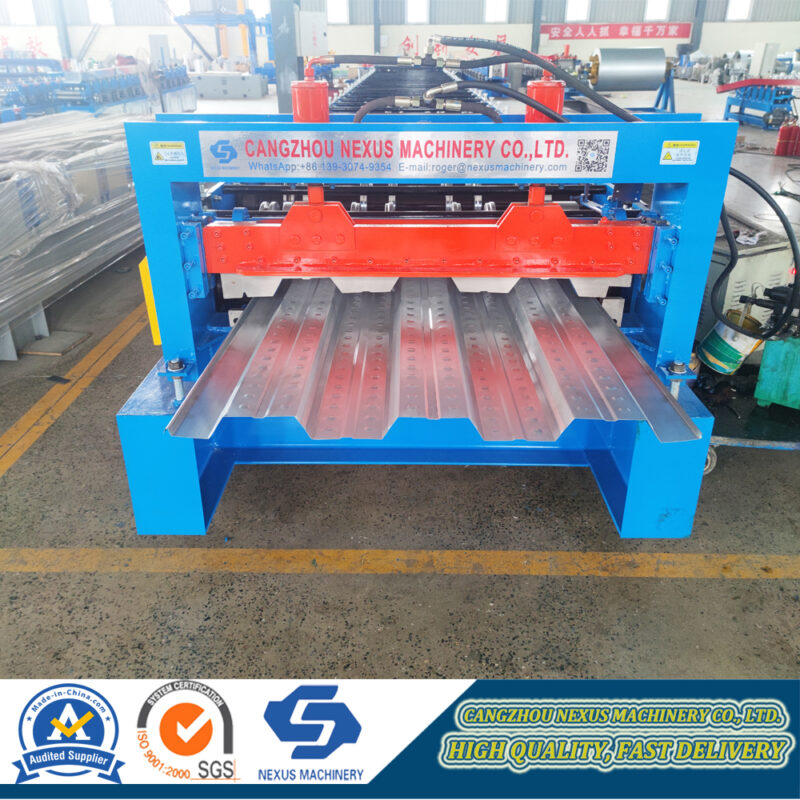

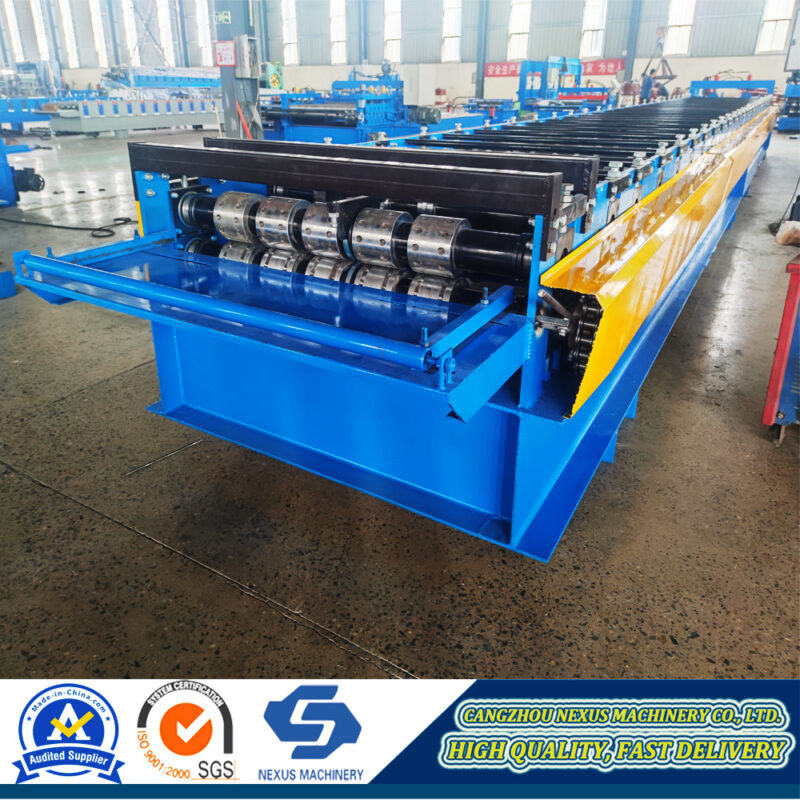

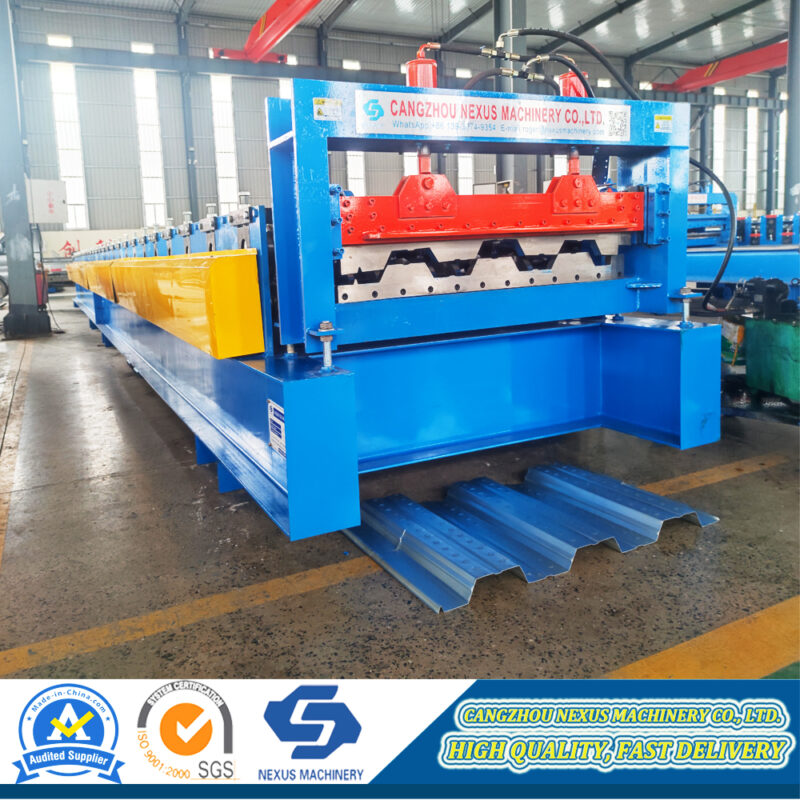

Metal Decking Sheet Roll Forming Machine

Certification: CE,SGS
Loading Port: Tianjin,China
Delivery Time: 25-40 days
Payment Terms: T/T, L/C
Warranty: 1 Year after Shipment
After-Sales Service: Engineer is available to overseas
Product Details

Metal Decking Sheet Roll Forming Machine makes decking sheet with 1250mm coil width, which is very popular in Africa, Asia, America market. The main material is galvanized steel sheet. Thickness range from 0.70-1.20mm. Work speed can reach 15m/min.

Main Parameter:

Forming steps 28 stations for floor deck sheet
Shaft diameter 90mm
Design type Middle plate welded
Machine frame 350# H steel welded
roller material 45# steel, surface hard chromium plating.
shaft material 45# steel
Work speed 15m/min
Transport By 1 inch single chains
Power of main machine 11 kw*2
Type of cutting Hydraulic
Cutting tolerance ±1mm
