Product Details

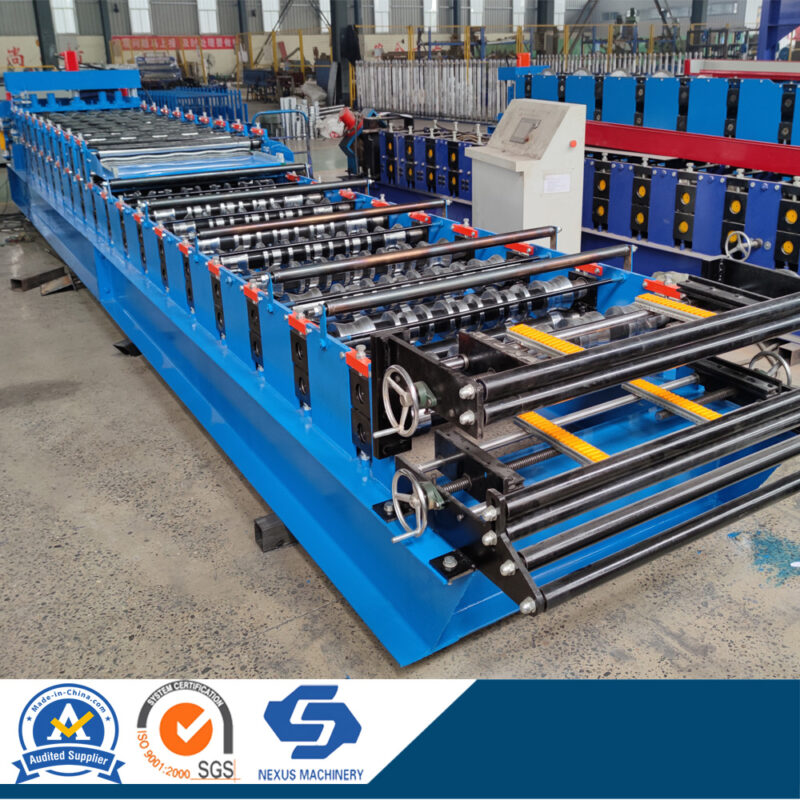

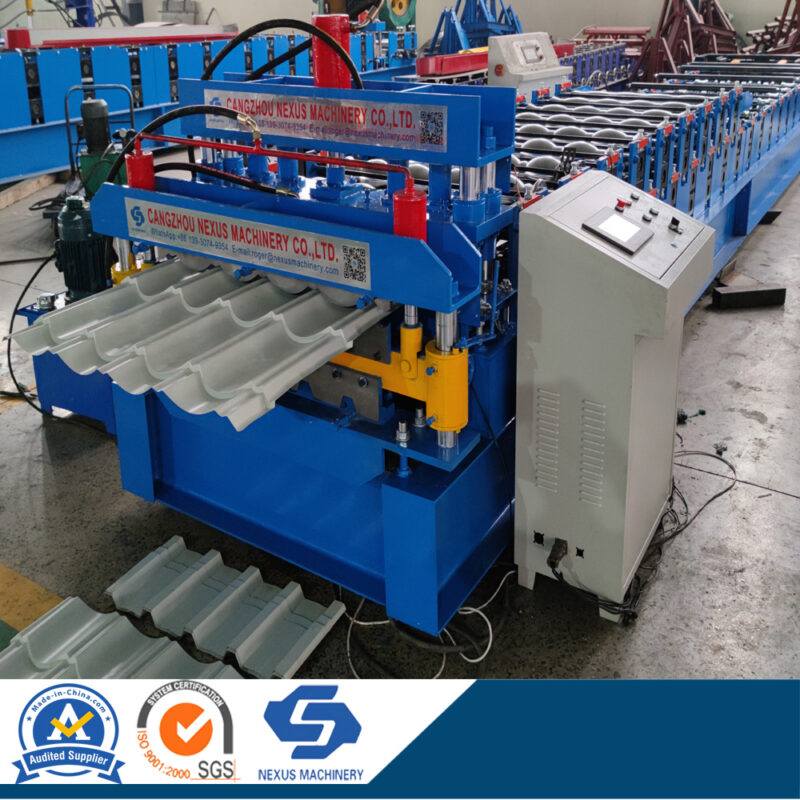

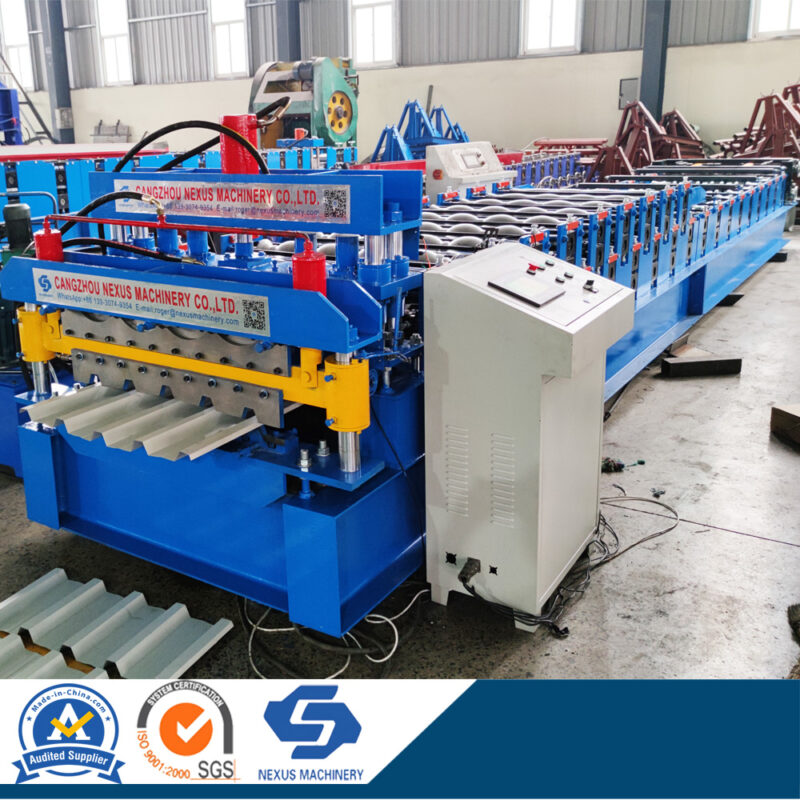

IBR&Qtile Sheet Roll Forming Machine is a double layer roll forming machine to make two different roofing sheets, it is designed to make IBR roof sheet with 925mm coil width and make Qtile sheet with 1000mm coil width, which is very popular in South Africa market, includes Zimbabwe, Zambia, Kenya, Nambia, Botswana, Ghana ect countries. The main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.70mm. Work speed can reach 15m/min.
Main Parameter:
| Forming steps | 18 stations for IBR sheet and 9 stations for Qtile sheet |
| Shaft diameter | 80mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
