Product Details

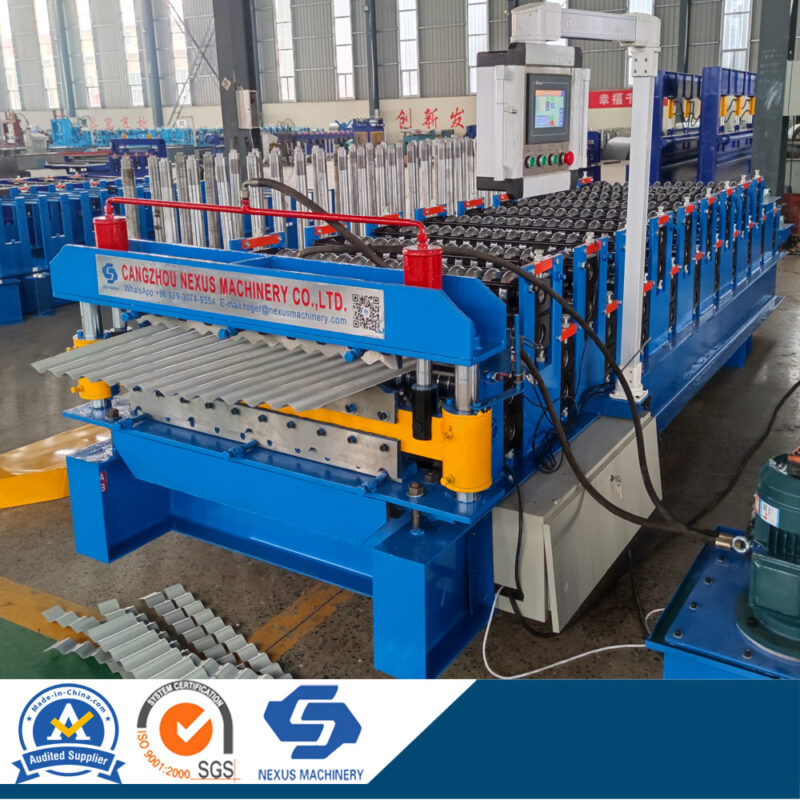

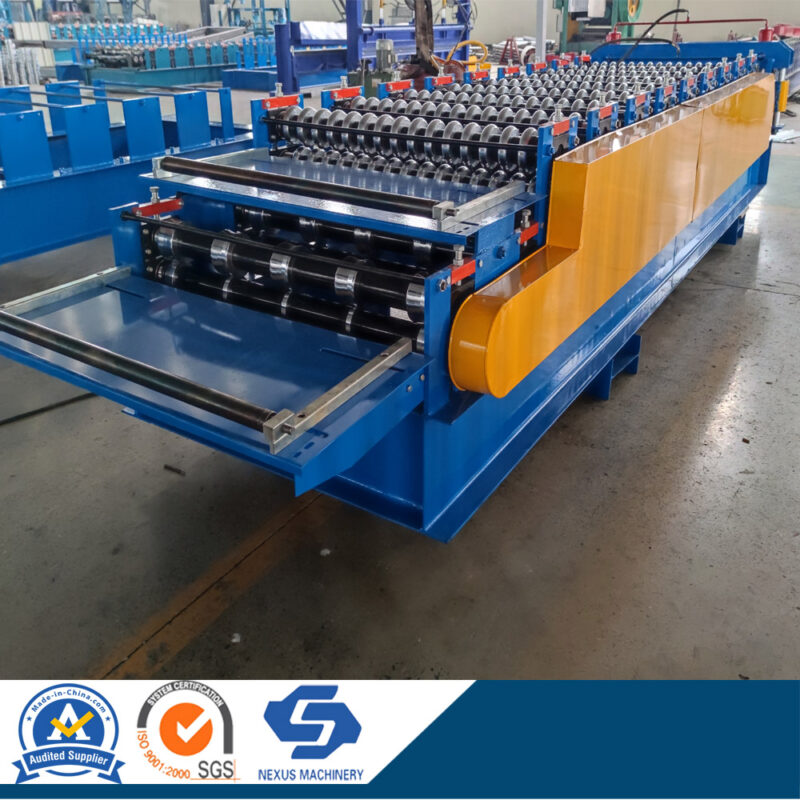

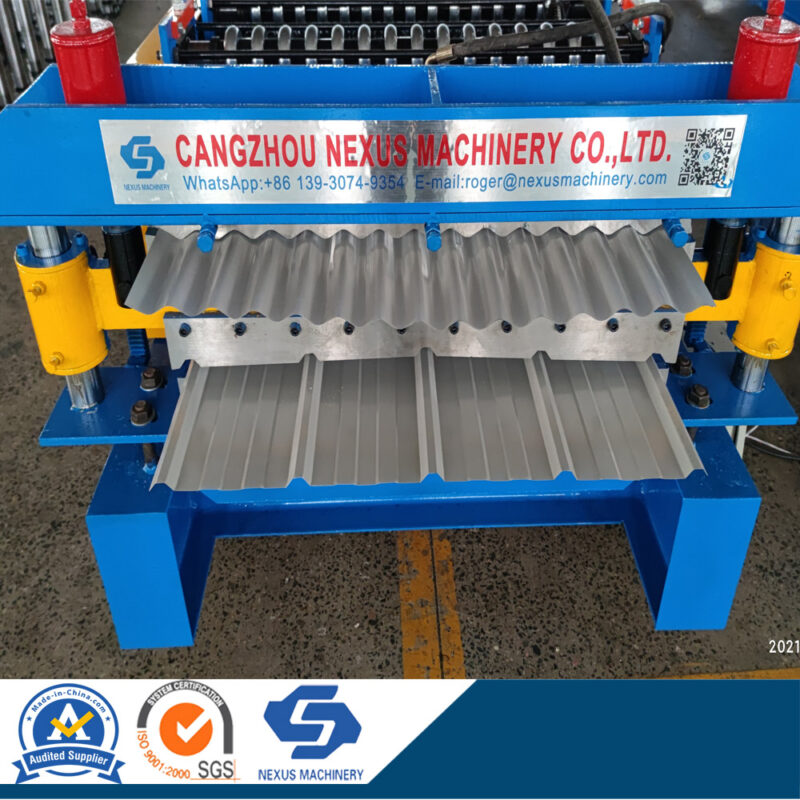

IBR sheet and Corrugated Roofing sheet Roll Forming Machine is a double layer roll forming machine to make two different roofing sheets, it is designed to make roof sheets with 1000mm coil width, IBR sheet with formed width 840mm and corrugated sheet with 850mm. the main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.80mm. Work speed can reach 20m/min.
Main Parameter:
| Forming steps | 9 stations and 11 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
