Product Details

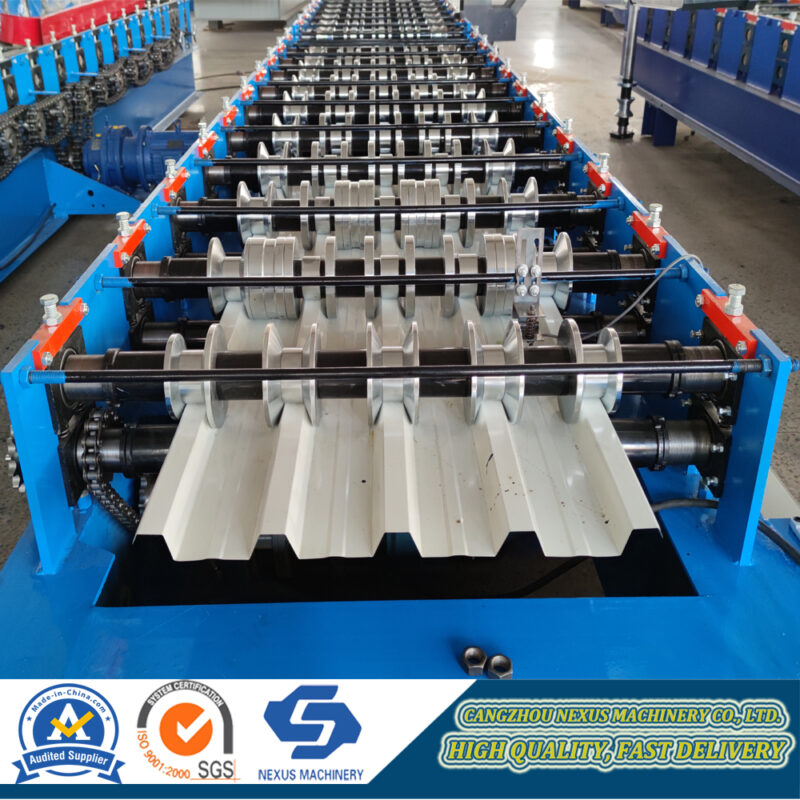

Chromadek IBR686 Sheeting Roll Forming Machine is a standard roll forming machine to make IBR roofing sheet, it is designed to make IBR roof sheet with 686mm chromadek sheet with 914mm and 925mm coil width, which is very popular in South Africa market, includes Zimbabwe, Zambia, Kenya, Nambia, Botswana, Ghana ect countries. The main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.70mm. Work speed can reach 25m/min.
Main Parameter:
| Forming steps | 18 stations for IBR sheet |
| Shaft diameter | 72mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
