Product Details

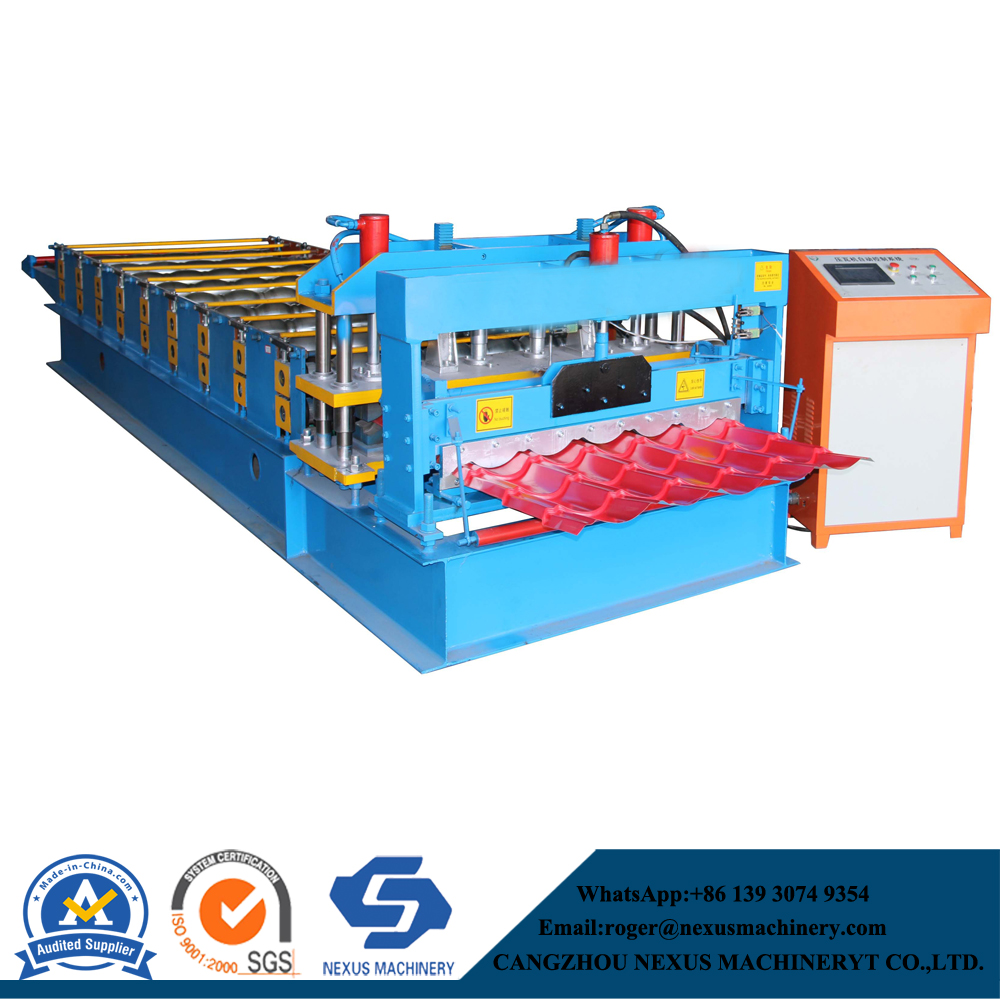

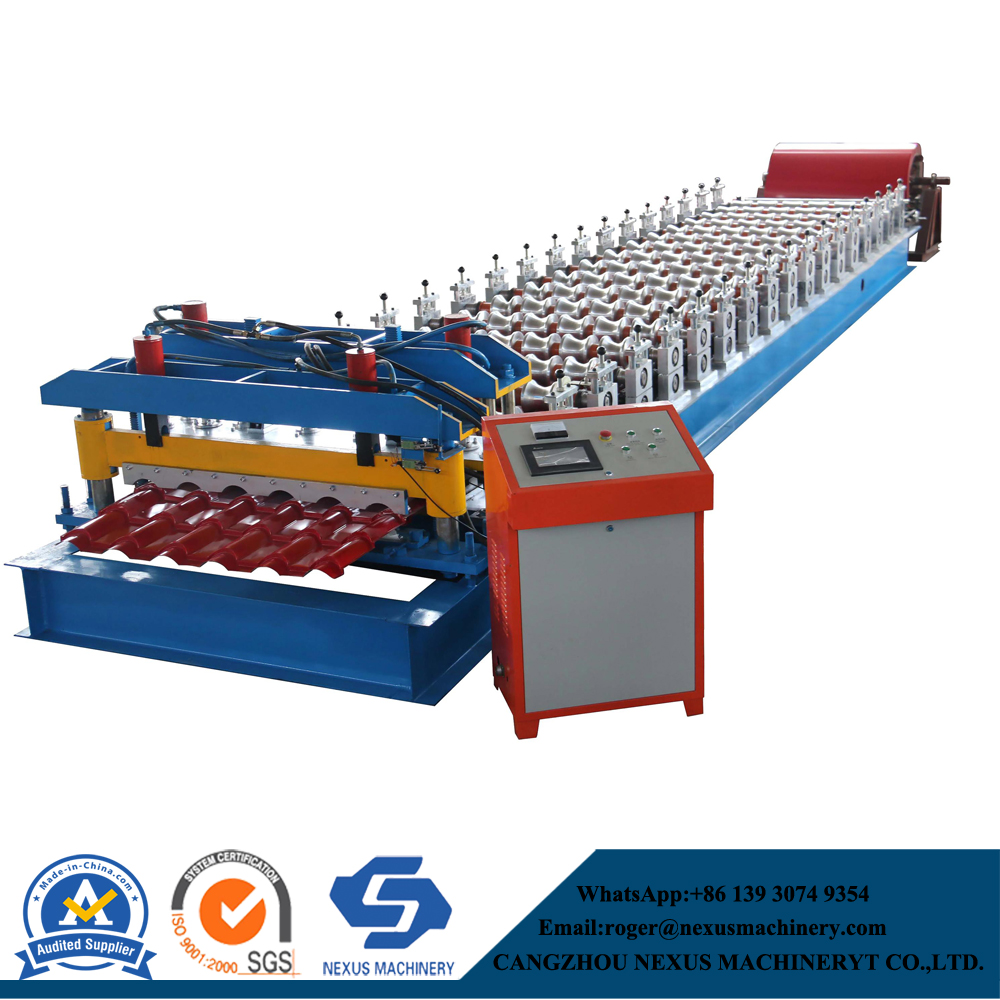

Compared with the normal roof tile machine, this machine has a hydraulic stepping,it will make the roof sheet fashion and beautiful, therefore glazed tiles are mainly used for roofing or wall tiles in garden buildings and antique buildings. All the stepping and cutting length will be controlled by computer, and all production line just need two workers.
Main Parameters:
| Forming steps | 14 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 0-7m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Type of stepping | Hydraulic |
