Cangzhou Nexus Machinery Co.,Ltd

Roof sheet roll forming machine

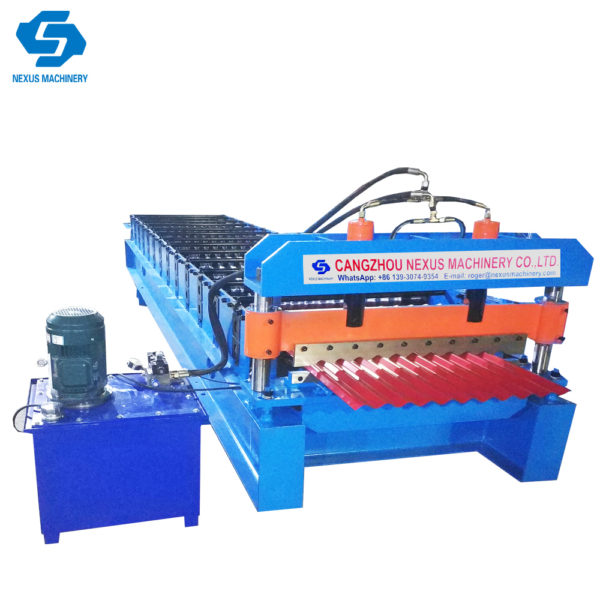

Florence Steel Corrugated Sheet Roll Forming Machine

Certification: CE,SGS Loading Port: Tianjin,China Delivery Time: 25-40 days Payment Terms: T/T, L/C Warranty: 1 Year after Shipment After-Sales Service: Engineer is available to overseas
Product Details

Florence Steel Corrugated Making Machine is designed to suit coil width 1000mm, the main material is pre-painted galvanized steel and galvanized steel.
Thickness range from 0.20-0.70mm. Work speed can reach 20m/min.

Main Parameter:

Forming steps 13 stations
Shaft diameter 70mm
Design type Middle plate welded
Machine frame 350# H steel welded
roller material 45# steel, surface hard chromium plating.
shaft material 45# steel
Work speed 20m/min
Transport By chains
Power of main machine 5.5 kw
Type of cutting Hydraulic
Cutting tolerance ±1mm
