Product Details

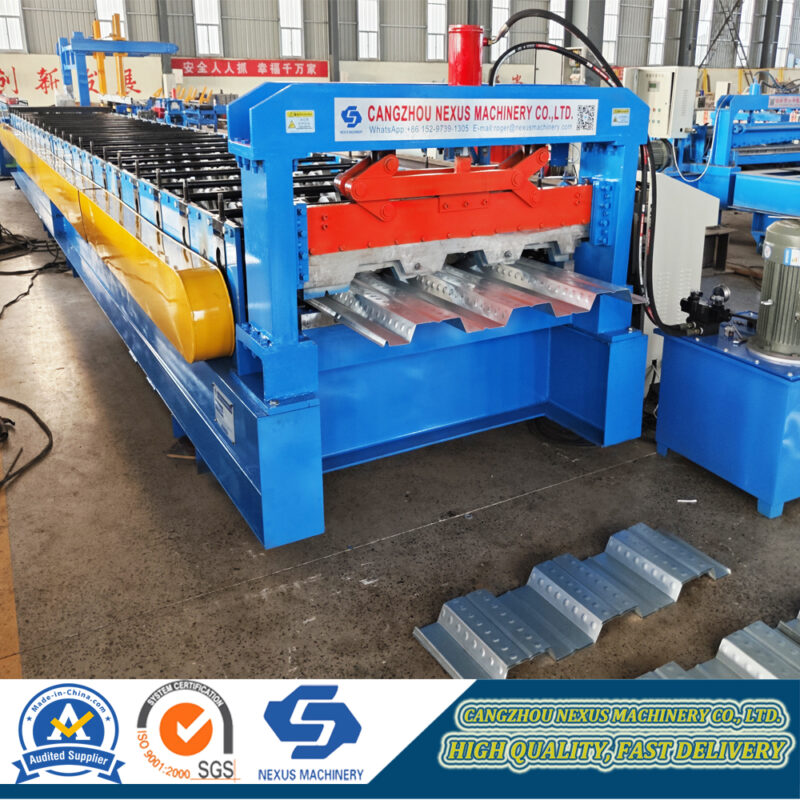

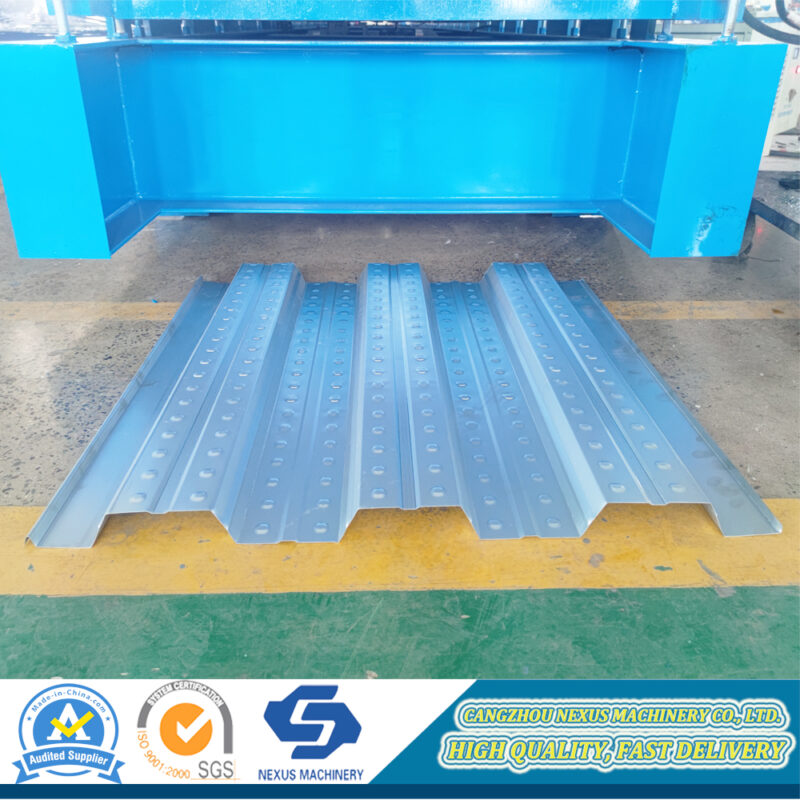

Floor Deck Sheet Roll Forming Machine makes floor deck sheet with 1250mm coil width, which is very popular in Africa, Asia, America market. The main material is galvanized steel sheet. Thickness range from 0.70-1.20mm. Work speed can reach 15m/min.
Main Parameter:
| Forming steps | 26 stations for floor deck sheet |
| Shaft diameter | 95mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 11 kw*2 |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
