Product Details

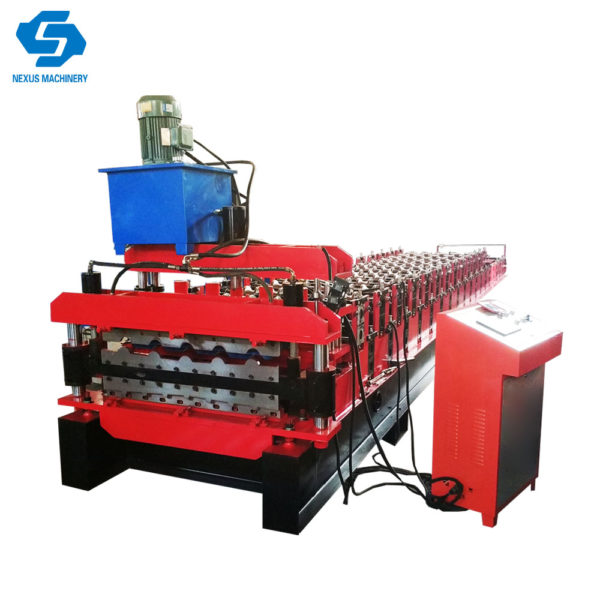

As a double layer roof tile roll forming machine,it will produce two different profile with one body. Compared with single layer machine, the double layer machine save space ,artificial and cost for customer.
- The appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connecter is screw which make the machine flexible and stronger.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
- Low noise with high efficiency
Main Parameter:
| Forming steps | 16 and 18 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15-20m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
