Product Details

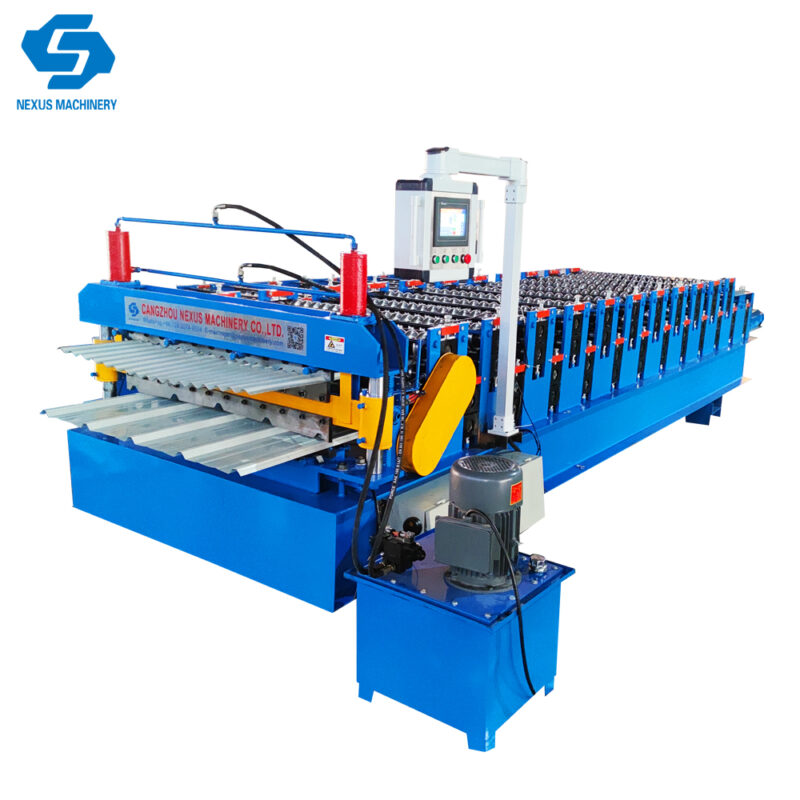

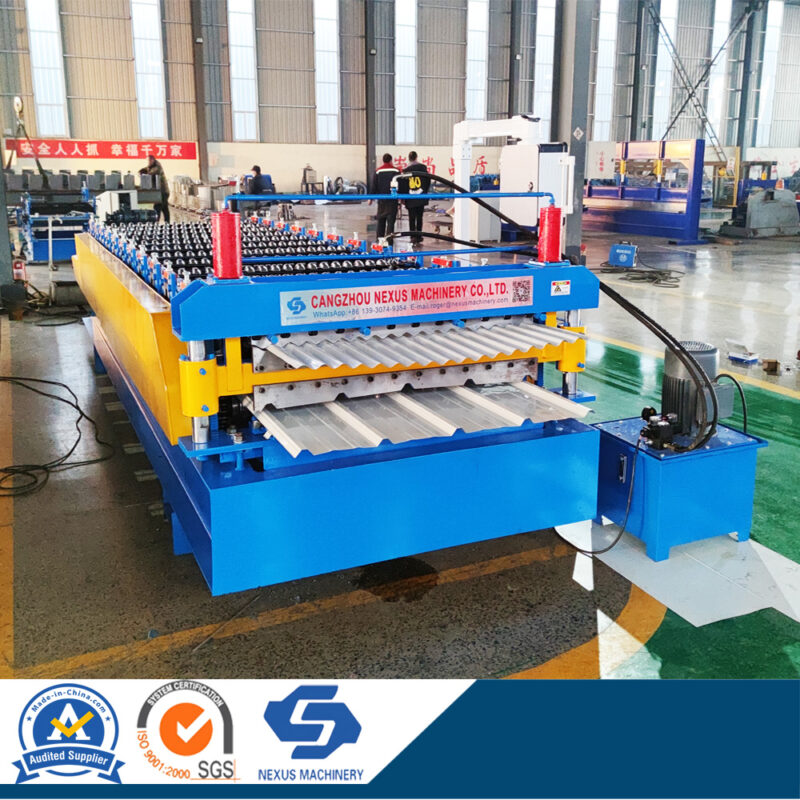

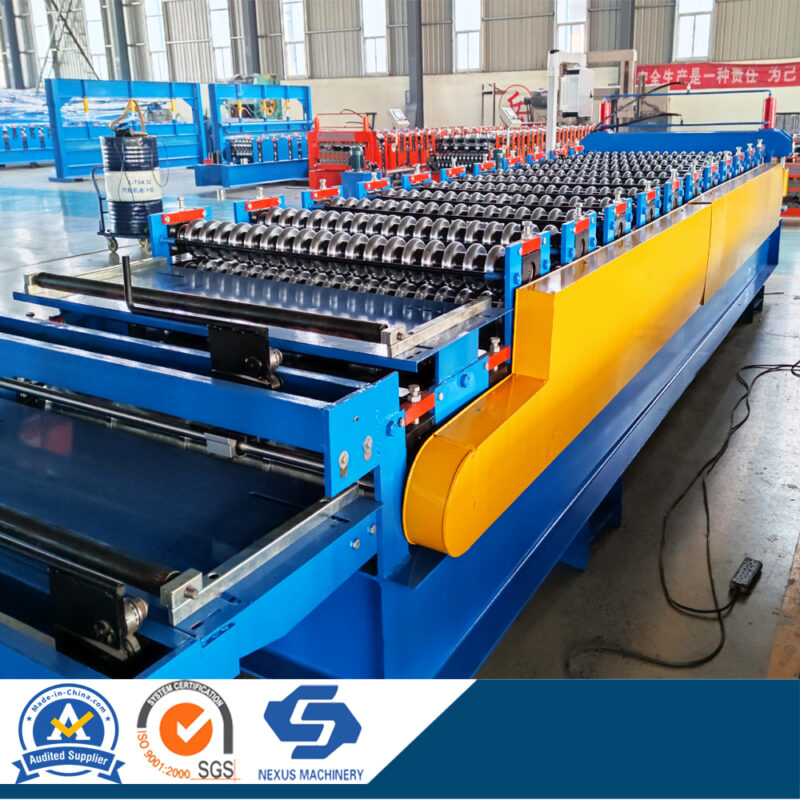

Double Layer Roll Forming Machine for Trapezoidal Sheet and Corrugated Sheet is roll forming machine to make two different roofing sheets, it is designed to make roof sheets with 1220mm coil width, trapezoidal sheet with formed width 1080mm and corrugated sheet with 1060mm. the main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.20-0.80mm. Work speed can reach 15m/min.
Main Parameter:
| Forming steps | 13 stations and 15 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
