Product Details

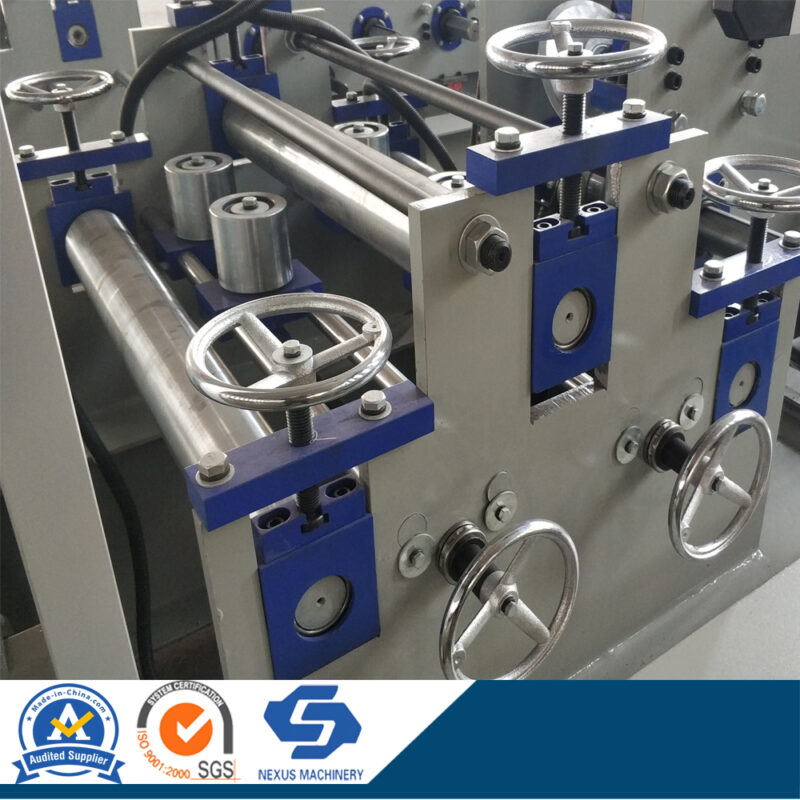

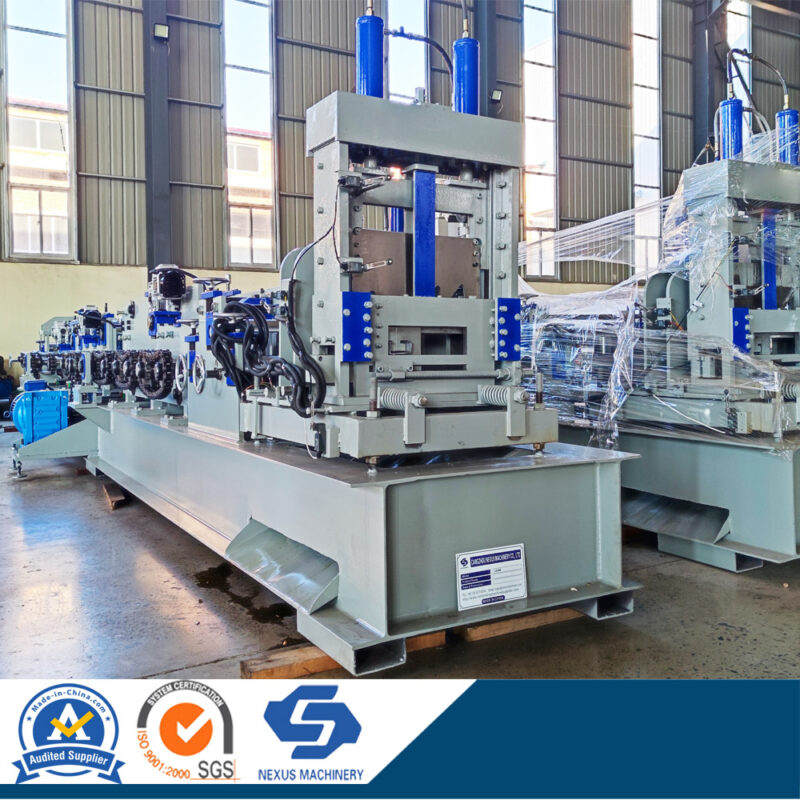

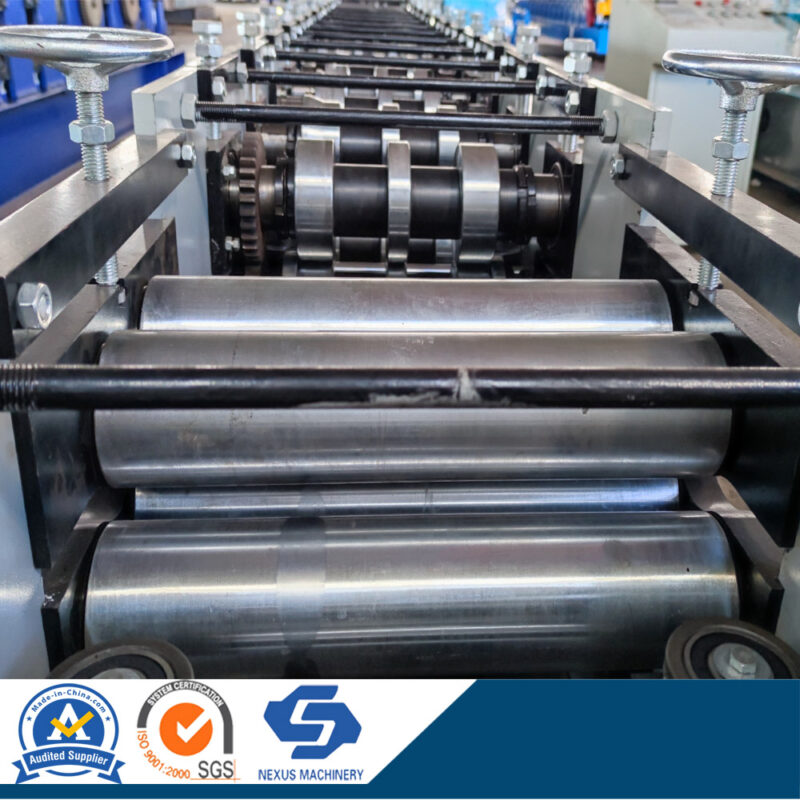

CZ Interchange Purlin Roll Forming Machine makes both C purlin and Z purin in same machine, which is very popular in Asia, Africa , Middle America market. The main material is galvanized steel and mild steel. Thickness range from 1.0-3.0mm. Work speed can reach 10-15m/min.
Main Parameter:
| Forming steps | 15-18 stations |
| Shaft diameter | 90mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 10-15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 15 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
