Product Details

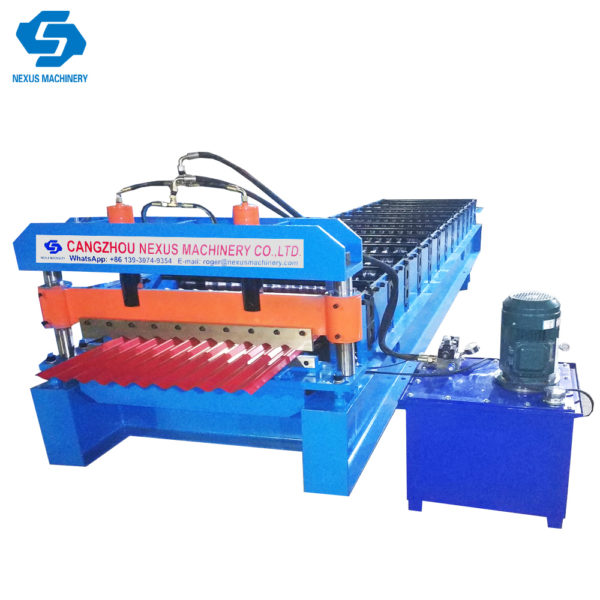

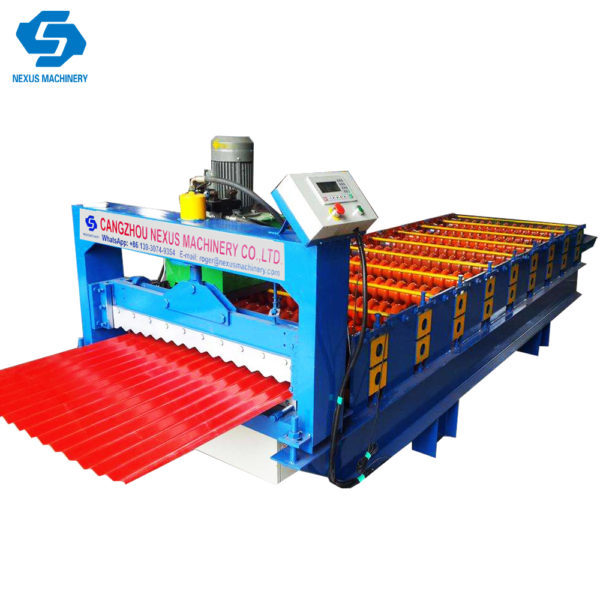

The corrugated machine makes metal sheet thickness from 0.3mm to 0.7mm. The suitable material are Galvanized,PPGI and aluminum sheet. All the complete production line can be 10 meters. The machine work speed from 8 meter per minute to 12 meters per minute and the production line need 2~ 3 workers.
Main Parameters:
| Forming speed | 8—12m/min. |
| Forming steps | 14 stations |
| Material of Shafts | 45# high-quality steel |
| Diameter of Shafts | 70mm |
| Material of Roller | high quality 45#steel coated with hard chrome 0.05mm. |
| Thickness of Siding Plate | 18mm |
| Transmission | by chain-brackets |
| Material of Chains | 45#steel with heat treatment: HRC45-50° |
| Motor Power | 5.5 KW |
