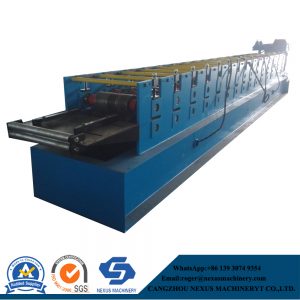

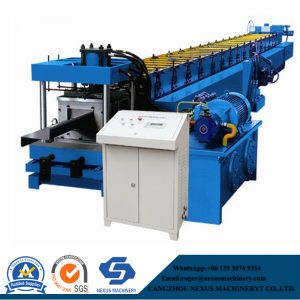

Steel purlin Z shape purlin machine strengthens its firmness with an arch type, stabilizes its operation with chain drive, and improves product quality by shearing to avoid port deformations.Products are widely applied in purline set-up of steel-structure houses.

• Main motor power: 5kw
• Drive: Chain
• Main shaft dia: ￠85mm   material: 45﹟forge steel and quenched
• Roller material: Gcr15 bearing steelforge steel and quench treatment hardness 58-62, chrome coated 0.05mm
• Roll station: 16groups
• Raw material: 5-3.0mm

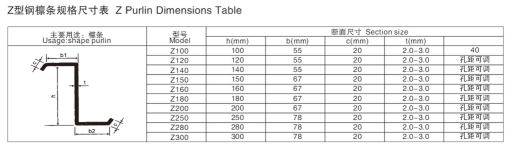

• Width of purlin: 100-300mm adjustable
• Working speed: 10m--15m/min(Exclude cutting time)
• Length Tolerance: ±3mm
• Weight of machine: about 7ton
• Size of machine: About  11000×1000×1500mm L x W x H
• Colorof machine: depend on customer
• Hydraulic power: 5.5KW
