Product Details

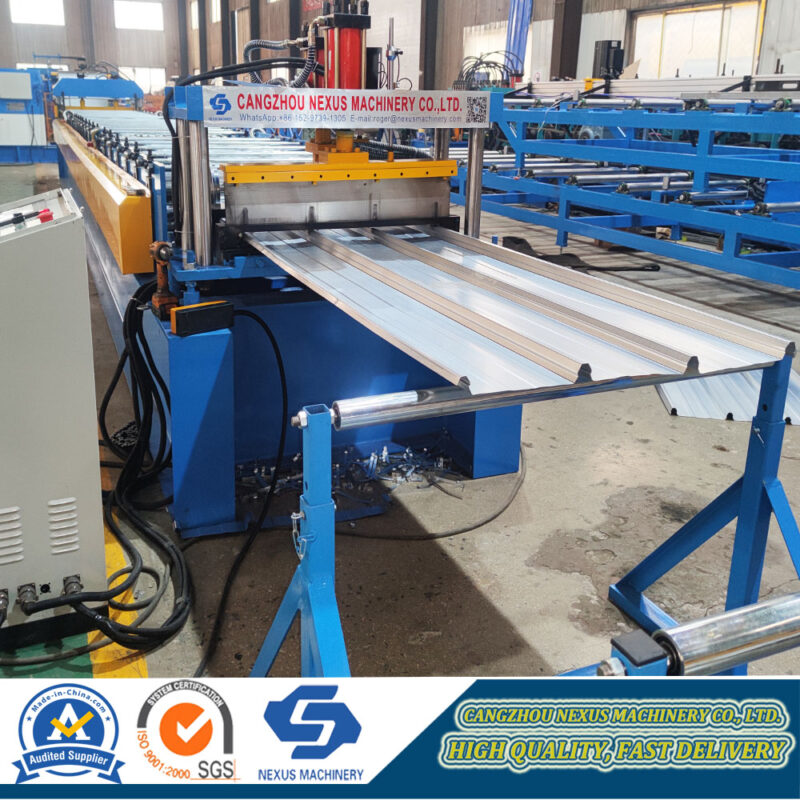

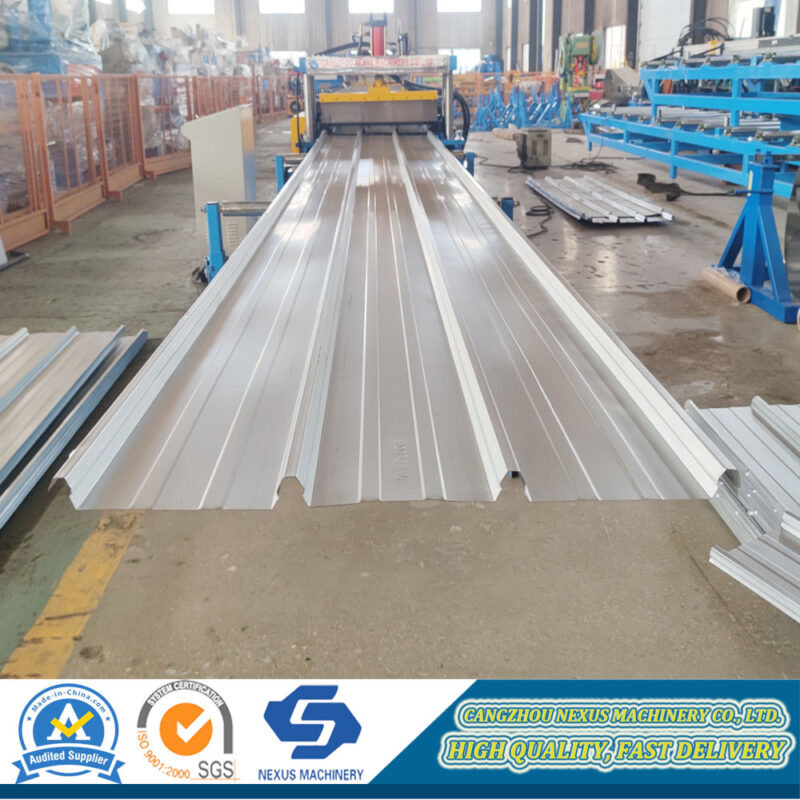

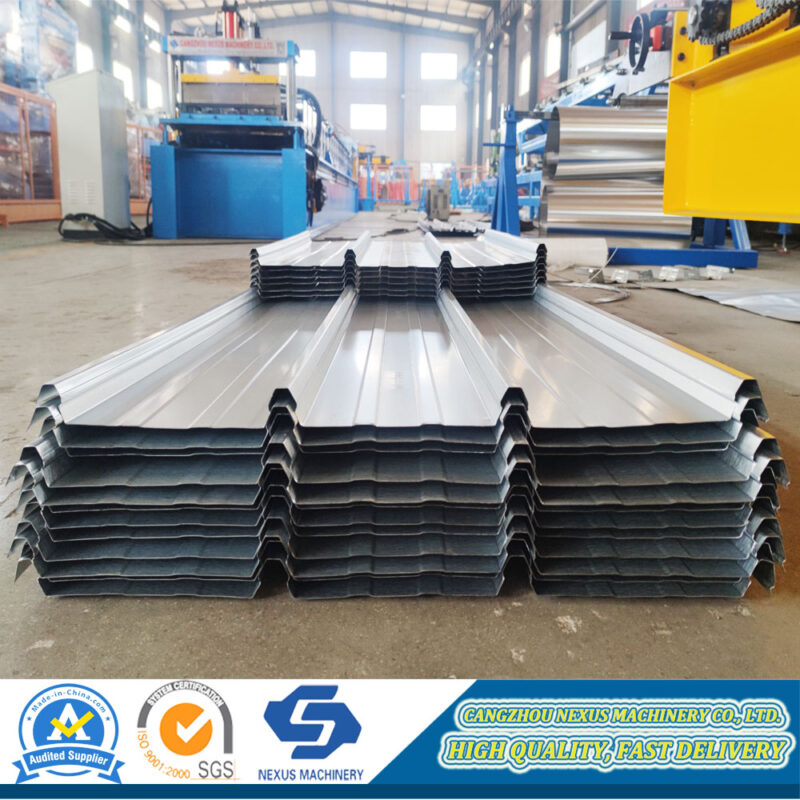

Clip Lock Roof Sheet Roll Forming Machine makes clip lock roof panel with 700mm coil width, which is very popular in Asia, Africa , Middle America market. The main material is pre-painted galvanized steel and galvanized steel. Thickness range from 0.50-0.80mm. Work speed can reach 10-15m/min.
Main Parameter:
| Forming steps | 20-26 stations |
| Shaft diameter | 80mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 10-15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
