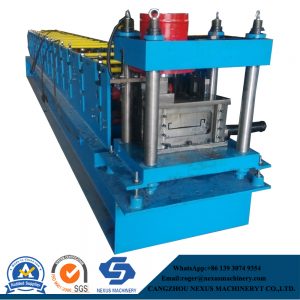

The C shape purlin roll forming machine is a machine that can produce a variety of sizes, the web width can be 60-300mm, the flange height can be 30-80, and the adjustable from minimum to maximum. The size of the holes can be designed as you need.This C shape purlin roll forming machine consists of uncoiler,feeding and straightening, main roll forming part,cutting and punching device,runout table.

Main motor power: 15kw

Drive: Chain

Main shaft dia: ￠76mm   material: 45﹟forge steel and quenched

Roller material: Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm

Roll station: 12 groups

Raw material: 2.5-3.0mm

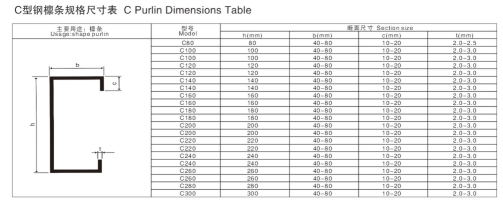

Width of purlin: 100-300mm adjustable

Working speed: 10m--15m/min(Exclude cutting time)

Length Tolerance: ±3mm

Weight of machine: about 6ton

Size of machine: About  9500×1000×1500mm L x W x H

Punching: Hydraulic punching before roll forming

Hydraulic power: 5.5KW

Blade material: Cr12,quenched 58°-62°

Cutting tolerance: +/- 1.5mm
