Product Details

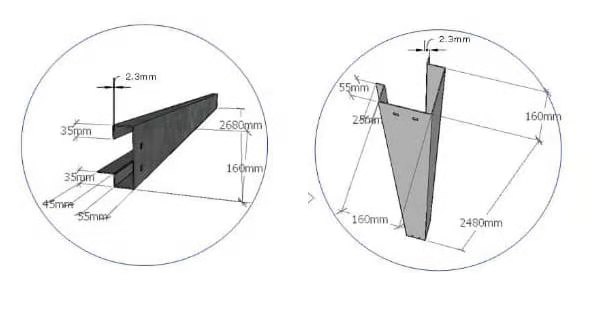

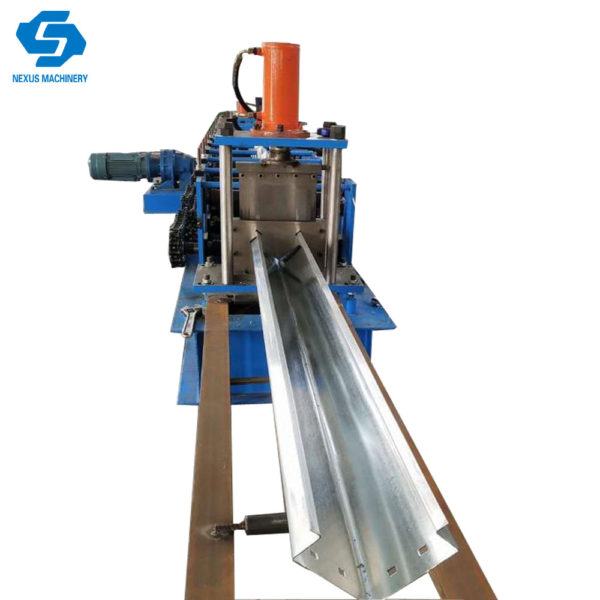

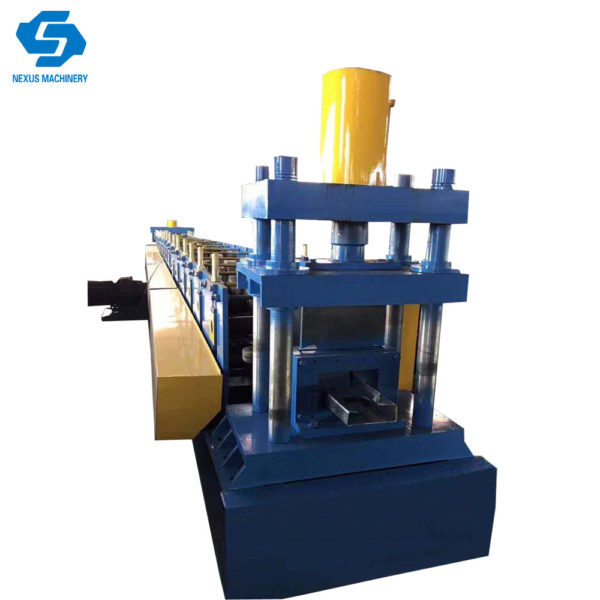

Beam Purlin Roll Forming Machine is a kind of roll forming machine to make main frame of quick assemble house or container house, it is designed to make steel beam purlins, the main material is galvanized steel. Thickness range from 2.30-3.00mm. Work speed can reach 10m/min.
Main Parameter:
| Forming steps | 16 stations |
| Shaft diameter | 95mm |
| Design type | Middle plate welded |
| Machine frame | 400# H steel welded |
| roller material | Gcr15 steel |
| shaft material | 45# steel |
| Work speed | 10m/min |
| Transport | By 1.5 inch single chains |
| Power of main machine | 18 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
