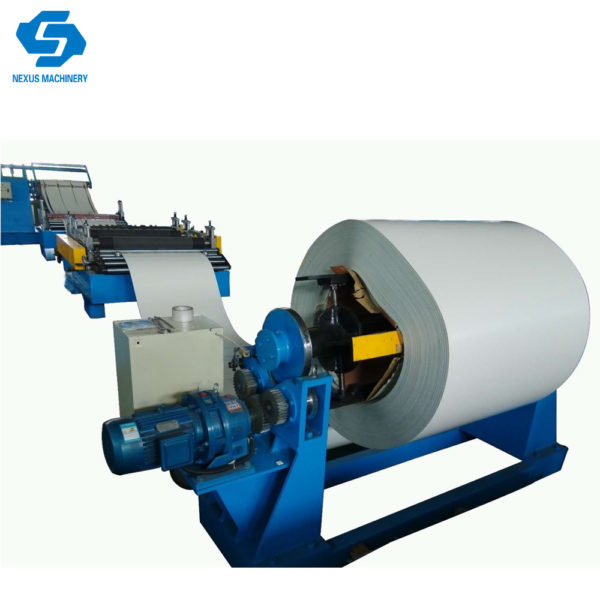

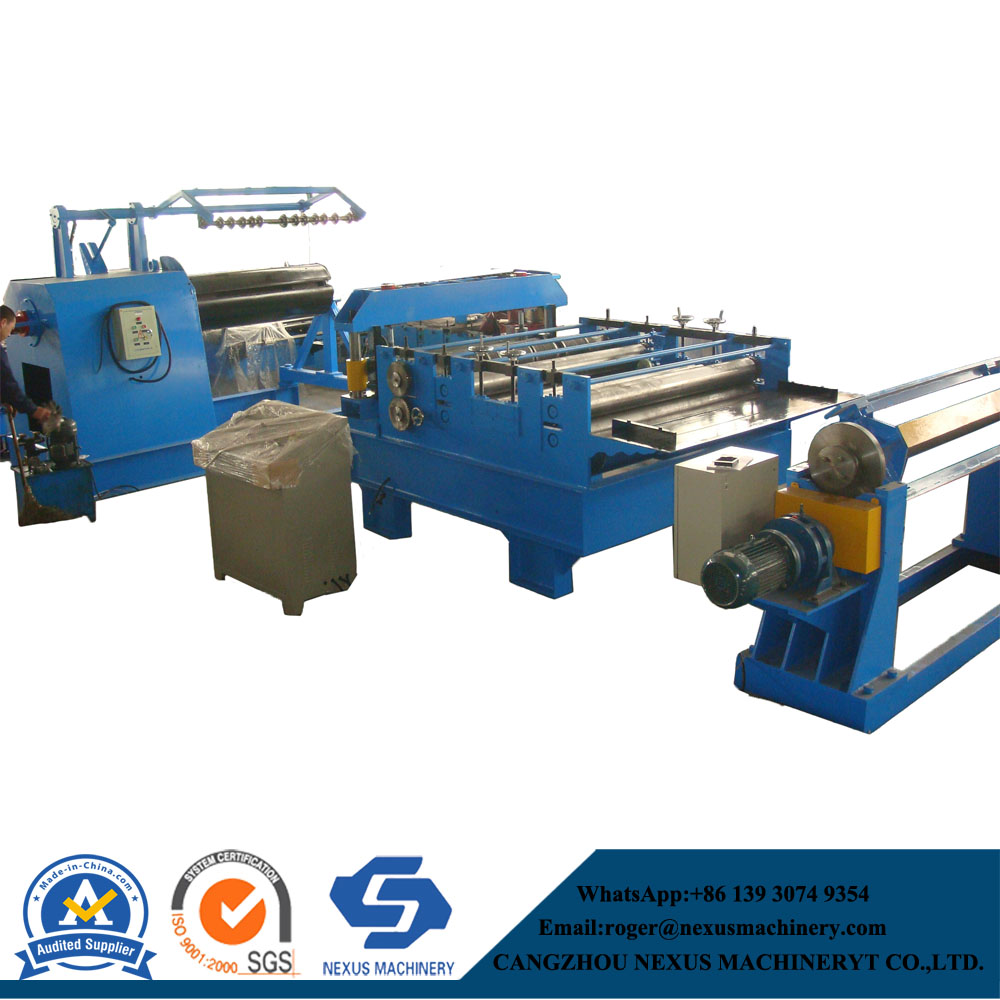

The automatic Steel Coil Slitting Machine and Cutting to Length Line is a combine machine , it has two functions, slitting the wide coil to narrow material and cut the long coil to short. All production  is consist of coil car, decoiler, main leveler, coil guide, encoder shearing machine, cut to length machine,conveying table, stacker, hydraulic system .

The processed materials for cutting can be galvanized steel, pre-painted steel,stainless steel,hot rolled or cold rolled steel as well aluminum coils,silicone steel and so on .The cutting product will be used widely in the forming machines industry,transformer making industry,electronics and the building materials.

Specification:

1. applied to: Mild steel and stainless steel;
2. compress strength: δb≤510Mpa;
3. coil thickness:2-6mm;
4. coil width:1600mm(Max);
5. coil I.D.:φ500-800mm;
6. coil O.D.:φ2000(Max)
7. coil weight:15T(Max)
8. diameter of slitting blade shaft:φ240, material:40Cr;
9. slitting blade:φ240mmXφ400mmX20mm;
10. material of slitting blade:LD;
11. strength of slitting blade:HRC58°- 60°;
12. scrap winder coil I.D:φ420mm;
13. scrap winder coil O.D:φ508mm;
14. Recoiler I.D: φ508mm

Finish parameter:

1. tolerance of width:≤±05mm/2M;

Other parameter:

1. power:380v/50hz/3ph;
2. slitting line speed:0-40m/min;
3. area of productionline: 30m(L)X6m(W);
4. production operators:1 technician , 2 generalworkers ;
5. device color: grass green;
6. device total weight:40Ton;
7. Container: 3 containers totally( 2x40GP  1X40 OT)
