Product Details

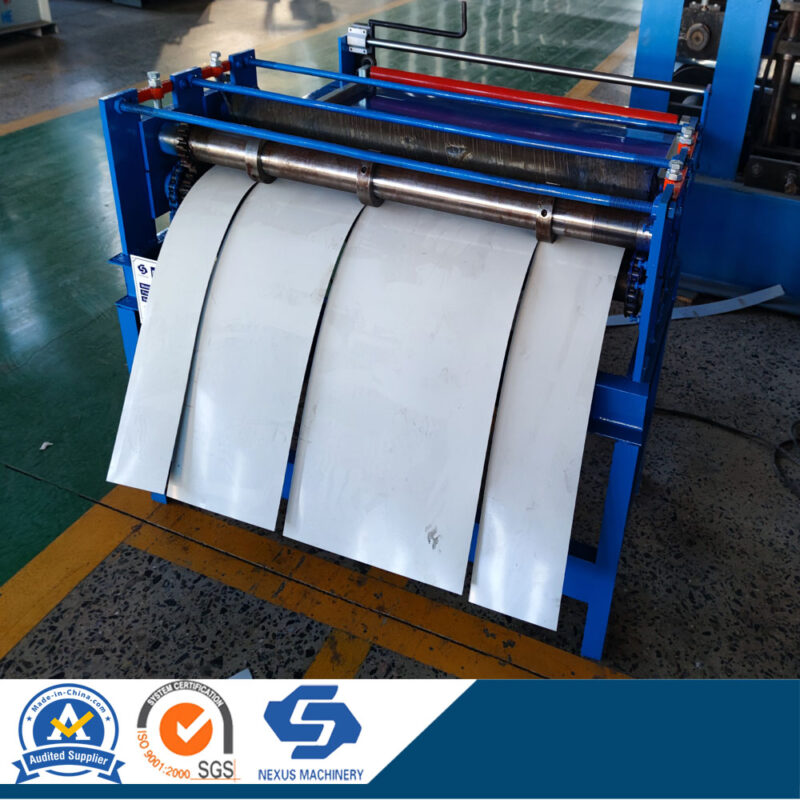

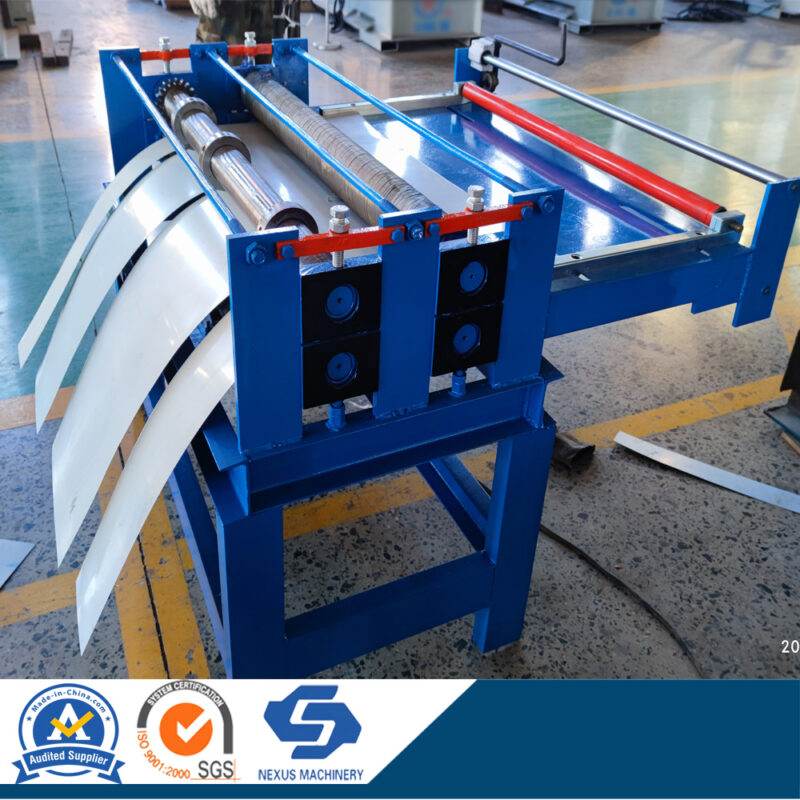

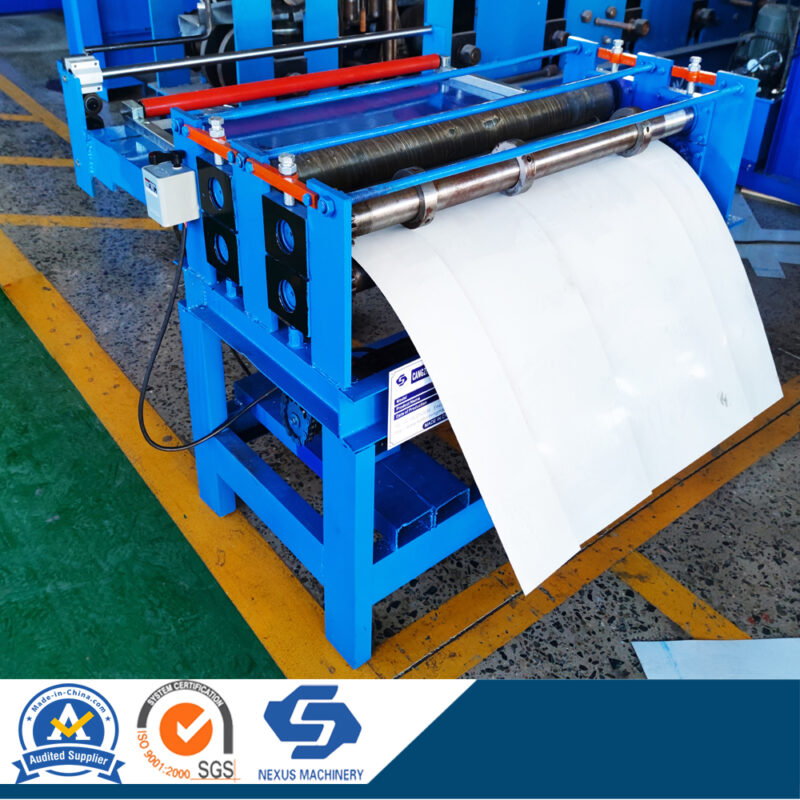

Compared with the coil slitting line, the simple color steel coil slitting strip machine is used to cut wide width materials panel to many narrow width products. It suitable for same same factory or just need slit panel work.
| Material | PPGI steel,GI Steel |
| Line speed | 10-12/min |
| Power | electric |
| Feeding width | 300-1200mm |
| Power of motor | 1.5KW |
| Diameter | 60mm |
| Color | Customized |
| Material of frame | 80mm H shape steel welding |
| Thickness of middle plate | 16mm |
| Drive type | Drive by chain |
| Weight | About 0.5T |
| Suitable coil thickness | 0.2-0.7mm |
| Appearance size | 1.7m (length)*1.8m (width) *1.2m (height) |
| Electrical parts | DELIXI or CHINT |
| Manual Pre-cutter | 1 piece |
