Product Details

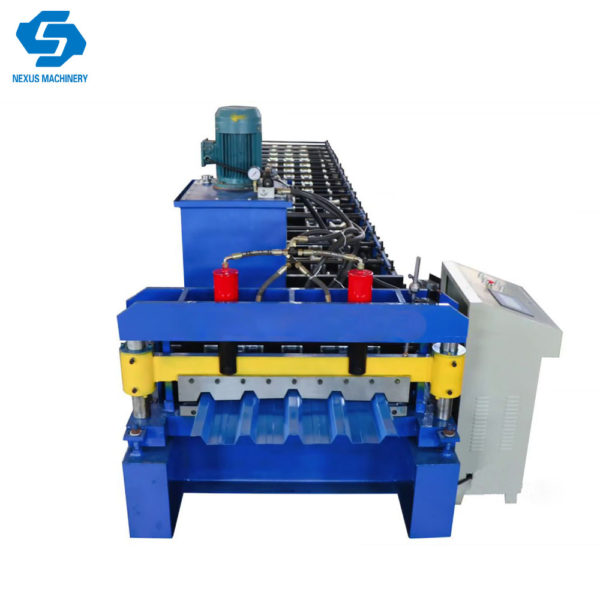

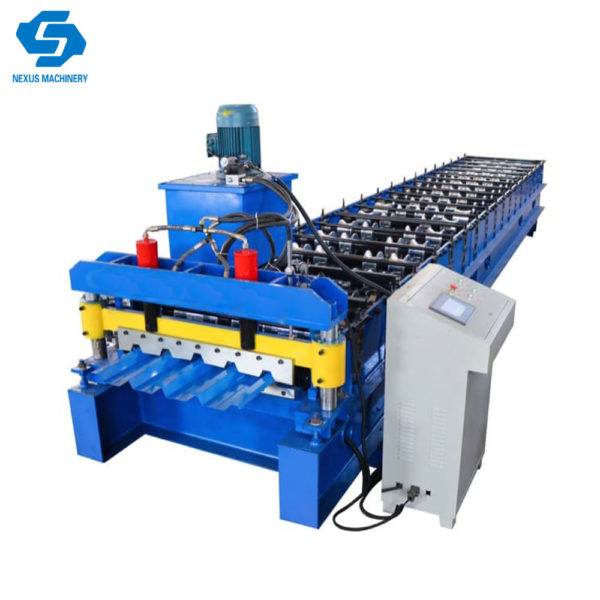

686 roll forming machine, also known as making machine. It is a unique version of Africa.
Its special size will make the stonger strength and prolong the life of the product, and it can maintain the temperature very well.
| Forming steps | 18 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 20m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
