Product Details

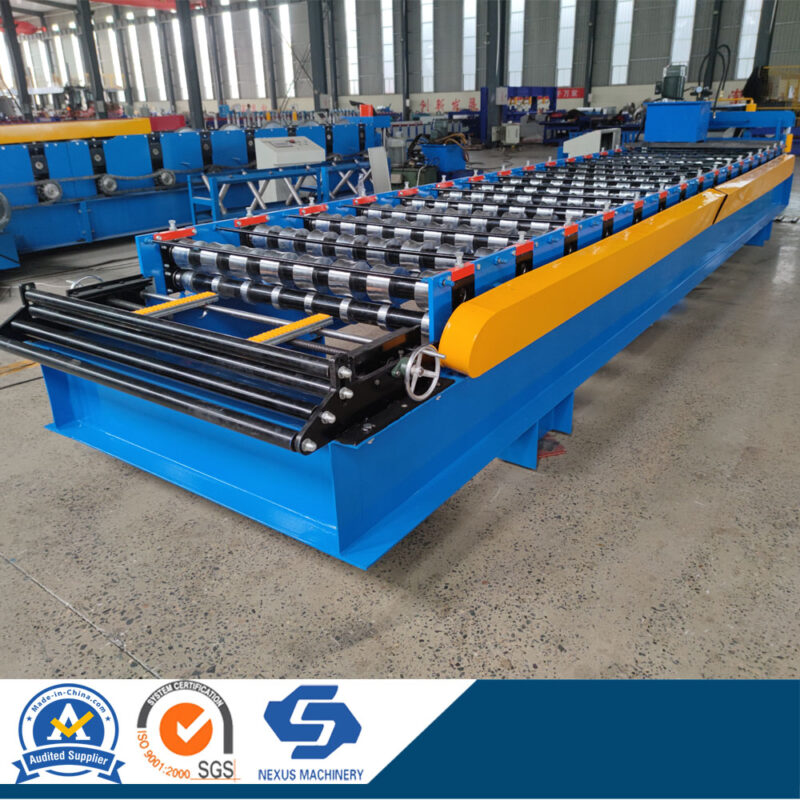

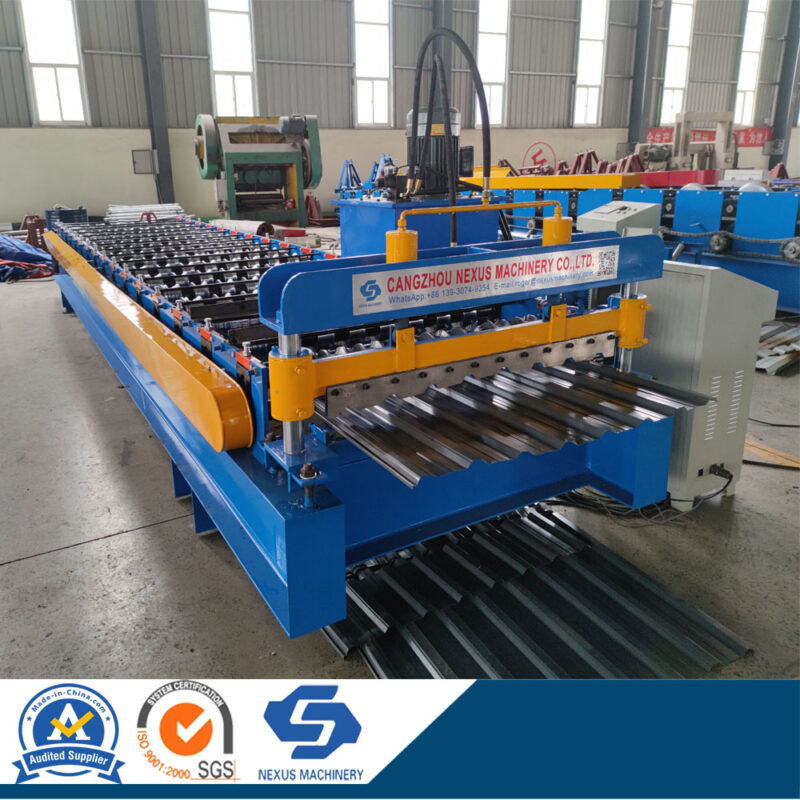

Multi-R Span Sheet Roll Forming Machine is a roofing sheet machine to make multiple ribs roof sheets, it is designed to make roof sheets with 1220mm coil width, the main material is pre-painted galvanized steel,galvanized steel and Aluminum sheet. Thickness range from 0.30-0.70mm. Work speed can reach 15m/min. Very Popular in Philippines.
Main Parameter:
| Roll Forming stations | 16 stations |
| Shaft diameter | 76mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 15m/min |
| Transport | By 1 inch single chains |
| Power of main machine | 5.5 kw |

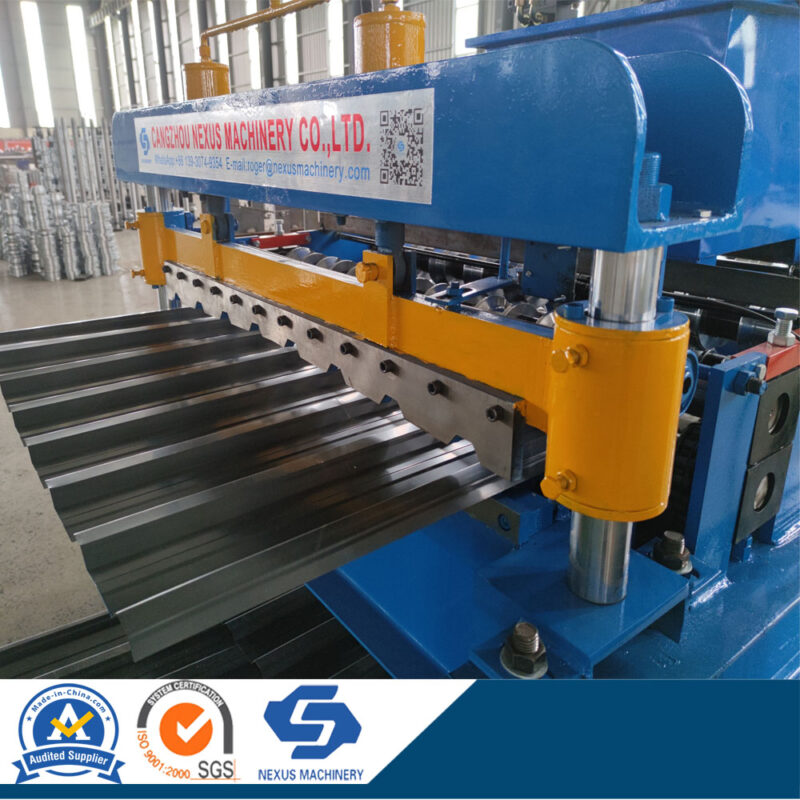

| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
